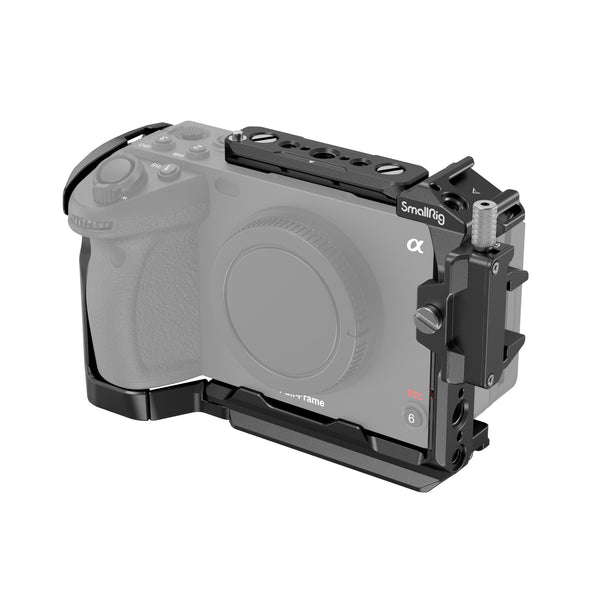

SmallRig Cage for Sony FX30 / FX3 4138 is designed to protect camera and provide accessory mounting points. The modular cage consists of a NATO rail and a U-shaped cage. The NATO rail is secured on the top via two 1/4"-20 screws and removed to allow installing the original XLR top handle; the U-shaped cage is fixed via 1/4"-20 screws on both sides and at the bottom to prevent twisting, with a cushion against scratches. At the battery door there is a hinge arm that fits camera curve for improved grip experience for little finger. A dedicated HDMI cable clamp protects interfaces to ensure stable signal transmission. Among its varied accessory mounts, 1/4"-20 holes support Magic Arm 2070; ARRI 3/8"-16 locating holes connect Top Handle 2165C or Monitor Mount 2903B; the top NATO rail supports Top Handle 3322, and the left one, Side Handle 2187B; 1/4"-20 locating holes at the top-left quarter and on the left side attach Rod Clamp 3598 for follow focus; two 1/4"-20 holes on the right side allow being securely mounted onto a quick release plate for vertical shooting; the cold shoe mount supports microphone, LED light; and the QD port at the bottom fits QD strap. An Arca-Swiss quick release plate at the bottom can attach DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro directly or quick release plate (height increase pad) for DJI RS 2 / RSC 2 gimbal and Arca-Type Quick Release Plate 3154. Both sides and the bottom have holes for Hand Strap 3848 and Shoulder Strap PSC2428. A magnetic spanner is also included for easy assembly and disassembly.

NOTE:

Due to the craftsmanship of manual grinding technology, this is normal situation while there are slight wear trace on the surface.
Please remove the top NATO rail before installing the original XLR handle.
Top 1/4"-20 holes have hole center distance of 27mm and are therefore incompatible with such accessories with hole center distance of 18mm as Monitor Mount 2904, mini Top Handle 2756

KEY FEATURES

Full cage that protects Sony FX30/ FX3
Modular design with removable NATO rail; supports the original XLR top handle
Hinge arm at the battery door fits camera curve for improved grip experience
Dedicated HDMI cable clamp ensures stable signal transmission
1/4"-20 threaded holes, ARRI 3/8"-16 locating holes, cold shoe mounts, NATO rails, QD port for handle, microphone, LED light, monitor, hand strap, etc.
Arca-Swiss quick release plate at the bottom quickly attaches DJI RS 2 / RS 3 gimbal and Arca-Swiss tripod

COMPATIBILITY
Sony FX30 & Sony FX3

PACKAGE INCLUDES

1 x Cage
1 x NATO rail
1 x HDMI Cable Clamp
2 x 1/4”-20 Screw

Product Dimensions: 159 x 101.2 x 66.2mm

Package Dimensions:180 x 129.5 x 78mm

Product Weight: 195±5g

Package Weight: 301±5g

Material(s): Aluminum Alloy, Stainless Steel
