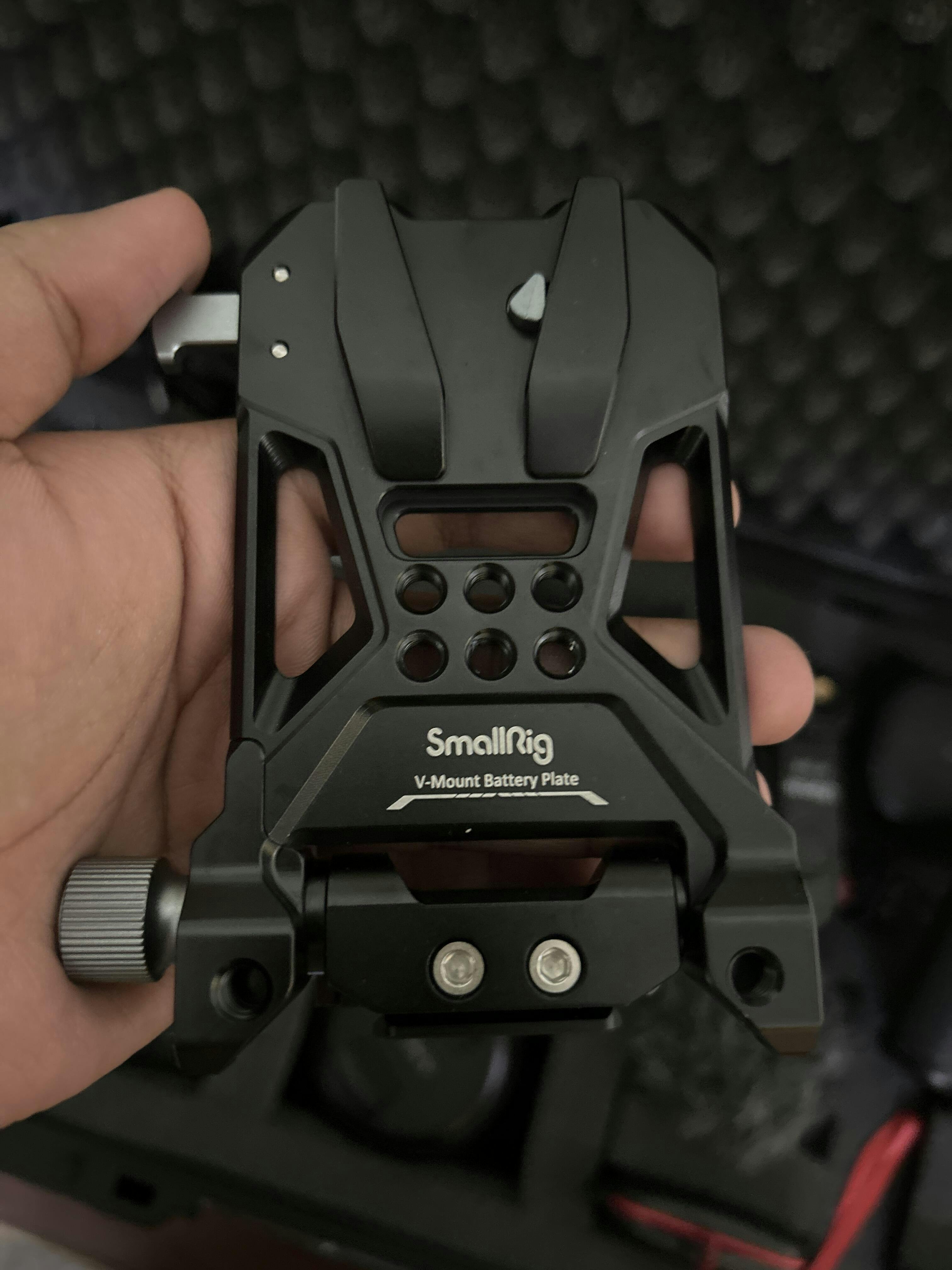

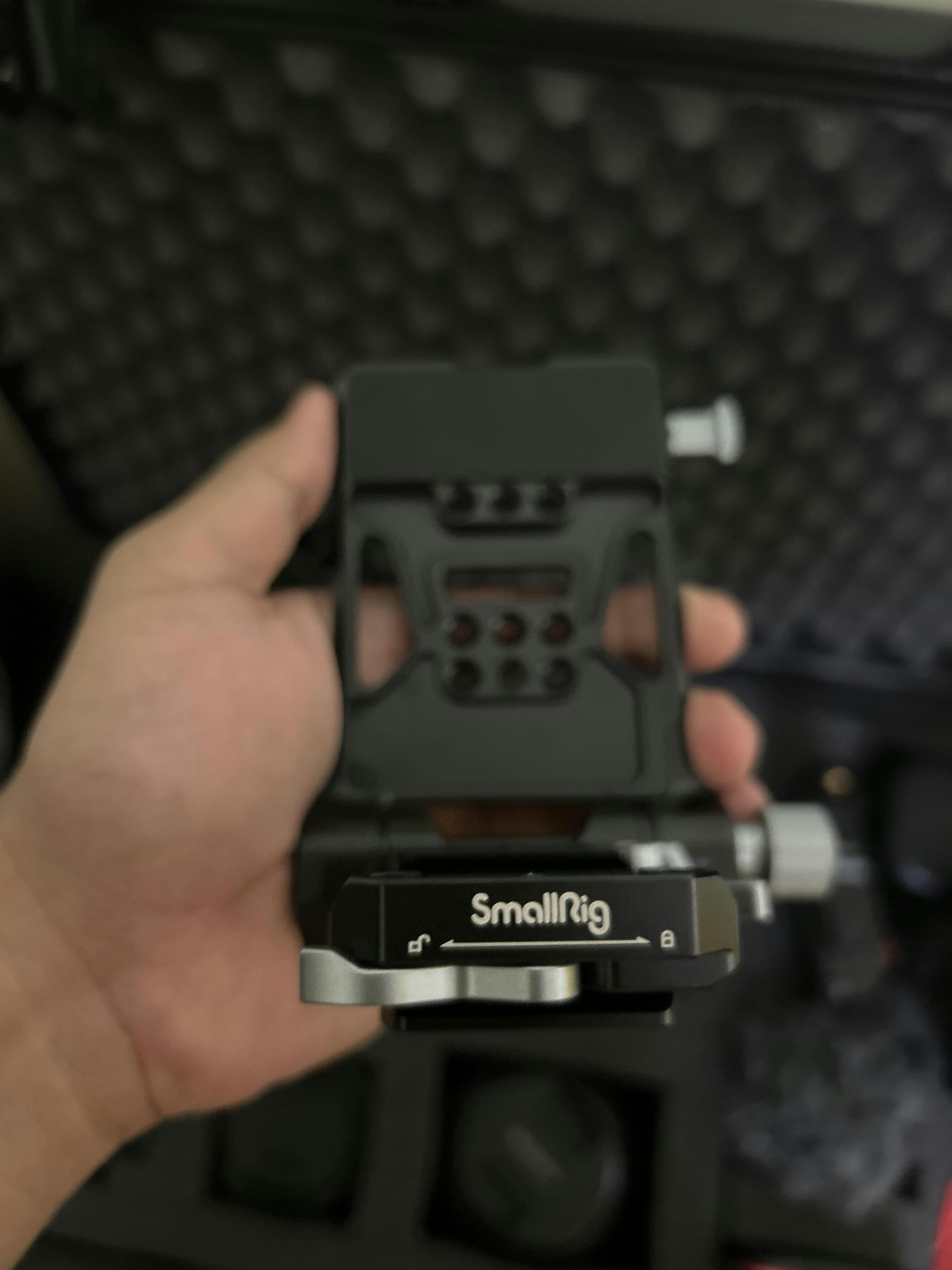

Compact V-Mount Battery Mounting System 4064B

KEY FEATURES

1. Versatile and Compact Design: Adopts L-shaped design, compact, lightweight, all-in-one mounting solution to V-mount battery realize quick installation and adjustment of camera and battery.

2. Stretchable Baseplate: Stretchable, and the maximum stretchable distance is 36.5 mm / 1.43 inch, which meets the needs of cameras of different sizes and improves the compatibility. Locking and releasing the rod is realized by a toggle lock, which is fast and time-saving without the needs of tools.

3. Double Quick Release Plate for Arca-Swiss: Its bottom is equipped with a 1/4 "-20 and 3/8 "-16 quick release plate for Arca-Swiss allows the camera to be quickly connected to the kit. which can quickly switch among handheld shooting, gimbal shooting and tripod shooting.

4. Not Block Camera Screen: You can flip the V-mount battery plate down 90 degrees through the thumb lock on the side, so that you have enough space to open the camera flip screen. This rotating design does not require you to remove the battery first, which effectively saves time. And it also with pivot dampening preventing your device from falling.

5. Variety of Power Solution Options: This V-mount battery Plate has a mini V-mount plate with 1/4 "-20 threads, which makes this V-mounted battery plate compatible with NP-F battery adapter plate and power bank holder, thus realizing more diversified battery solutions.

Work With

Mirrorless / DSLR cameras less than 111mm thick, for example:

Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 7C / FX3 / FX30

Canon EOS R5C / R5 / R6 / R6 Mark II / R7 / R10 / R / RP

Panasonic LUMIX S1H / S1R / S1 / S5 / S5 II / GH6 / GH5

Packing List

V-Mount Battery Plate x 1

Arca-Swiss Quick Release Plate x 1

V-Mount Backplate x 1

Technical Data

Product Dimensions: 113.5 x 91.5 x 41.8 mm / 4.5 x 3.6 x 1.7in

Package Dimensions: 145.0 x 104.0 x 57.0 mm / 5.7 x 4.1 x 2.2in

Product Weight: 258.0 ± 5g / 9.1 ± 0.2oz

Package Weight: 313.0 ± 5g / 11.0 ± 0.2oz

Material(s): Aluminum Alloy, Stainless Steel
