Description

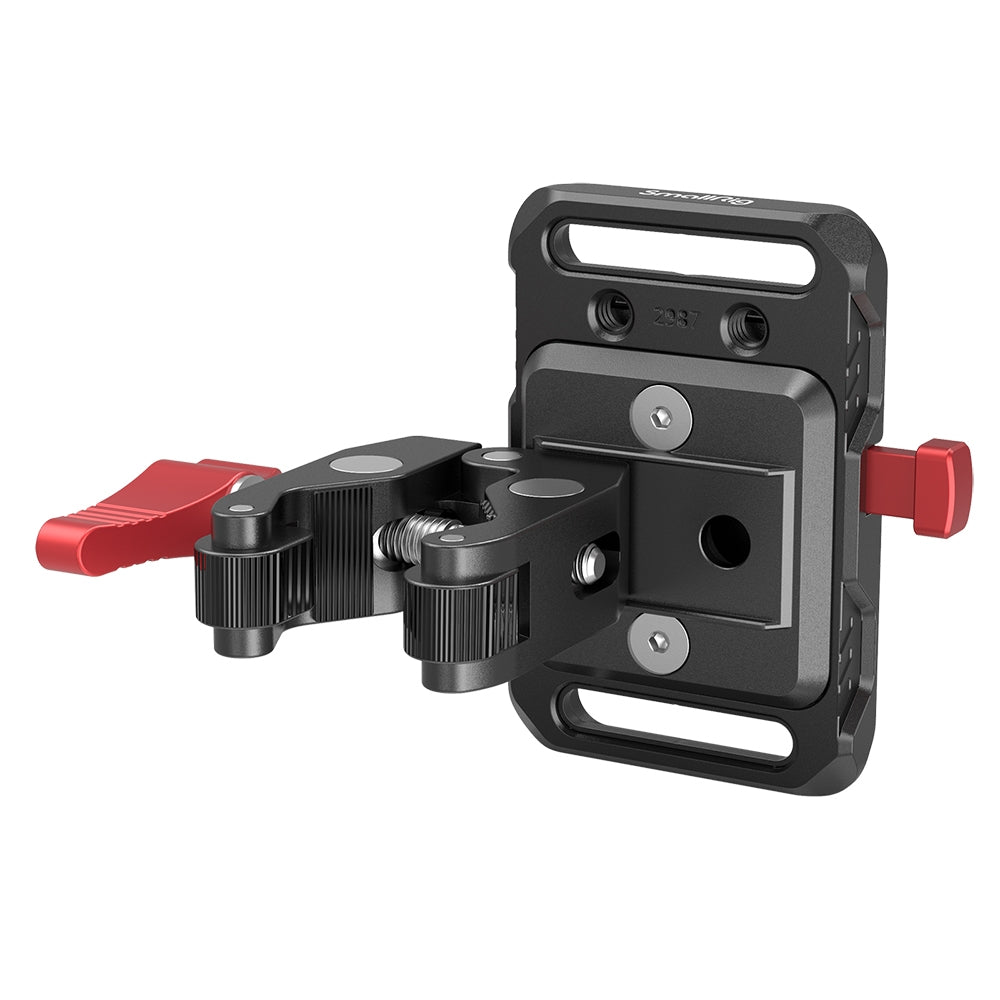

SmallRig Mini V Mount Battery Plate with Crab-Shaped Clamp 2989 utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig with your battery's power port(s). It comes with a crab-shaped clamp that fits rod diameter from 15mm to 30mm to help mount a V mount battery to a tripod, a light stand, or a handheld ring for gimbals. The plate itself features two 1/4-20" countersinks, two 1/4-20" thread holes, and four M4 thread holes, which can be used to attach a dual rod clamp, a magic arm, or other accessories, will help mount a V mount battery to your camera rig as needed. The mini shape design makes it lighter and more portable.
Note:
1. No V-Lock part (male) provided with the plate.
2. In order to achieve the maximum compatibility of the crab-shaped clamp, avoid installing the crab-shaped clamp in the center of the plate (refer to the picture for installation form).
3. This is purely a mounting solution for a V-mount battery — no power ports on the plate.
Key Features
1. The plate utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig with your battery's power port(s).

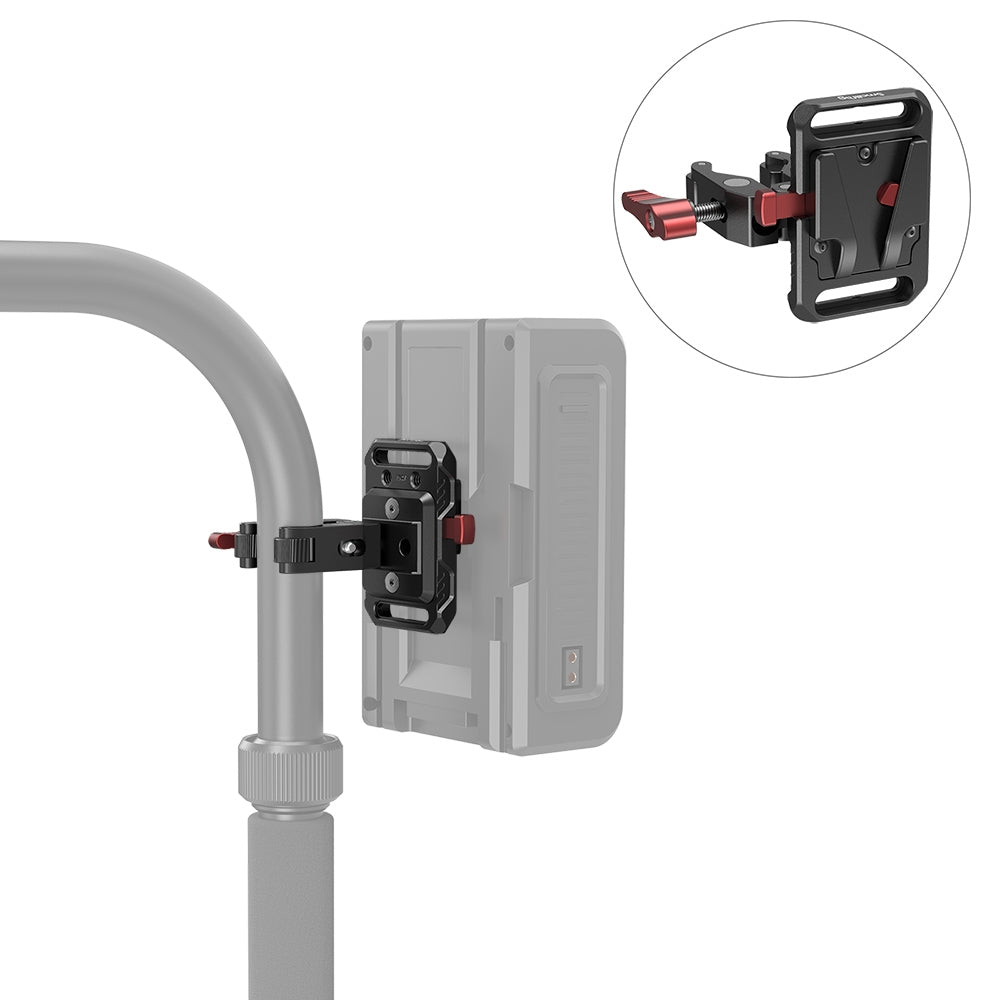

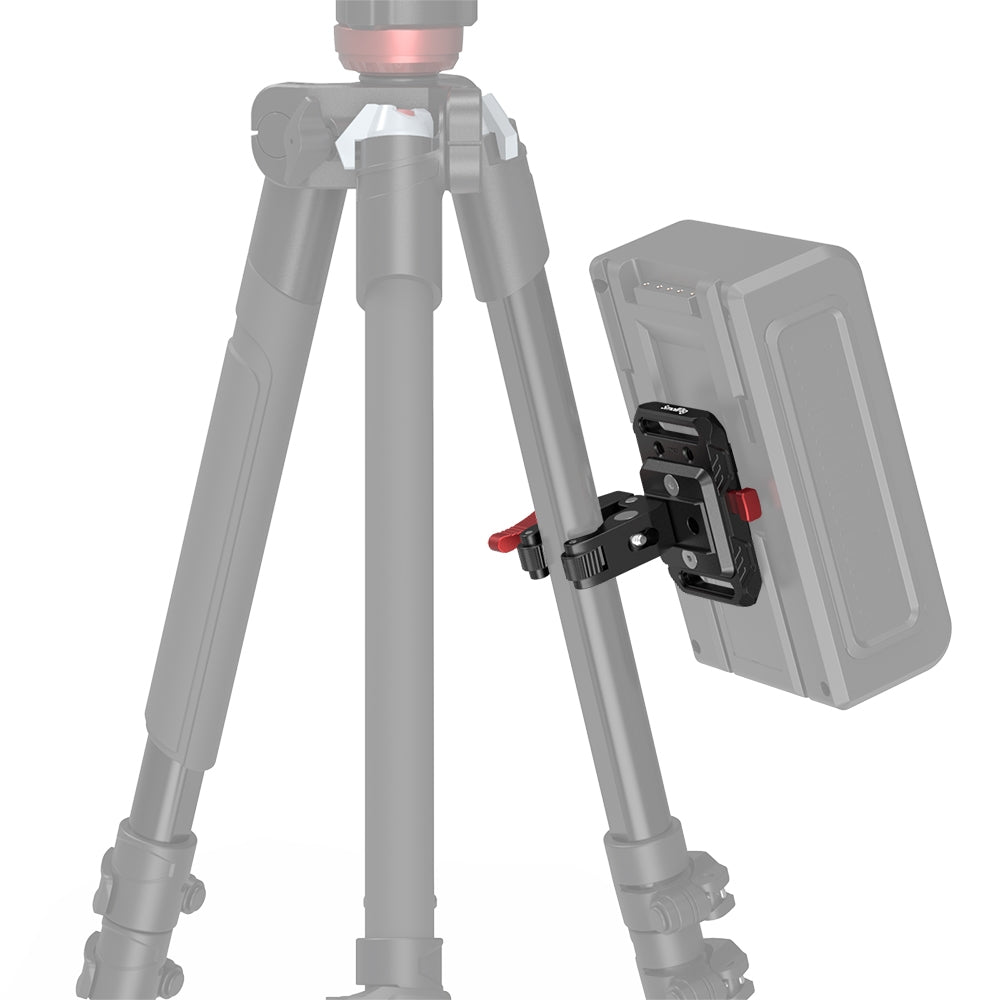

2. It comes with a crab-shaped clamp that fits rod diameter from 15mm to 30mm to help mount a V mount battery to a tripod, a light stand, or a handheld ring for gimbals.
3. The plate itself features multiple 1/4-20" countersinks, 1/4-20" thread holes, and M4 thread holes to attach a dual rod clamp, a magic arm, or other accessories.
4. Mini shape design, more lightweight and portable.
Work With
The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

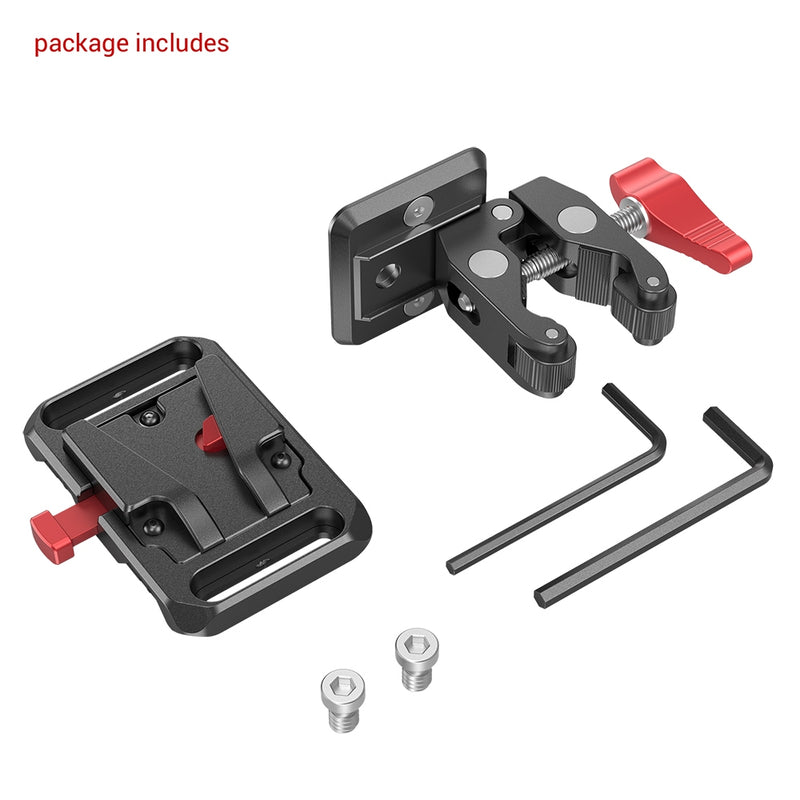

Packing List
1 x Mini V Mount Battery Plate
1 x Crab-shaped Clamp
2 x Allen Wrench
2 x 1/4-20" Screw
Technical Data

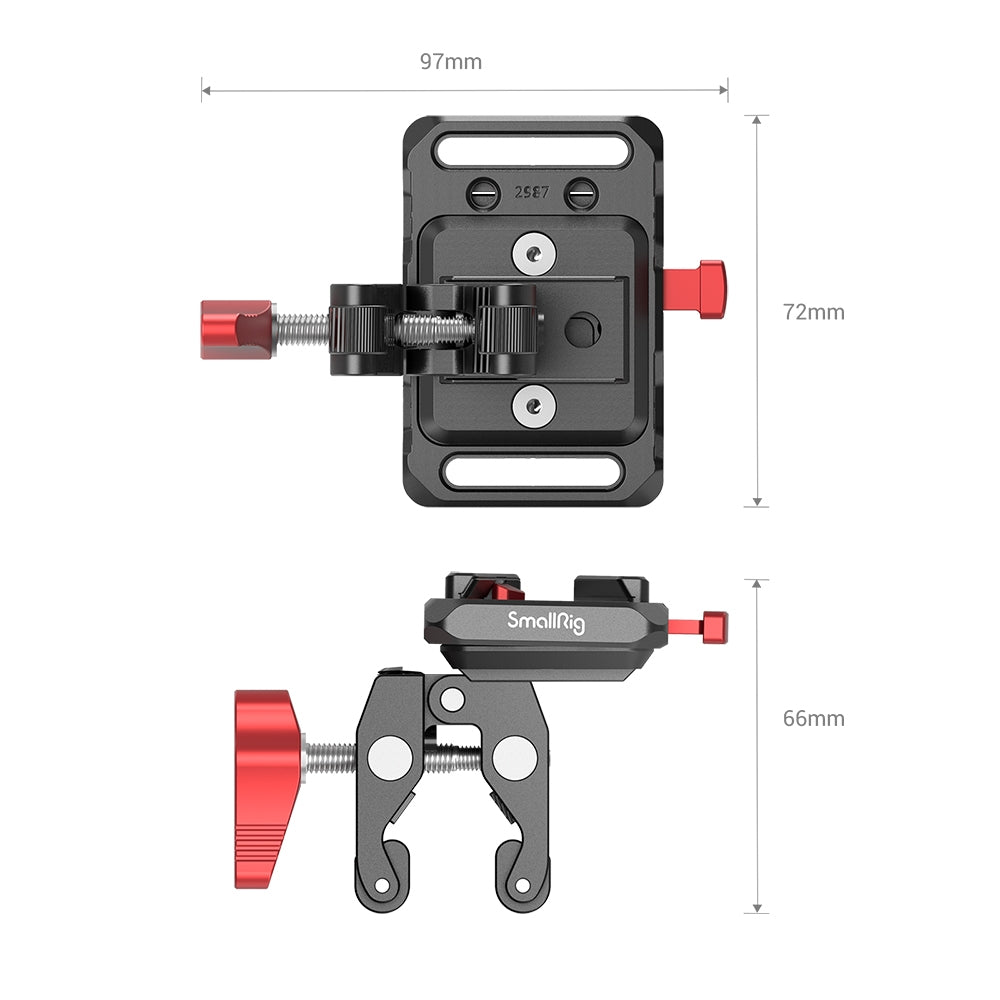

Product Dimensions: 97 x 72 x 65mm
Package Dimensions: 135 x 100 x 50mm
Net Weight: 150g±5g
Package Weight: 205g±5g
Material(s): Aluminum Alloy
