Description

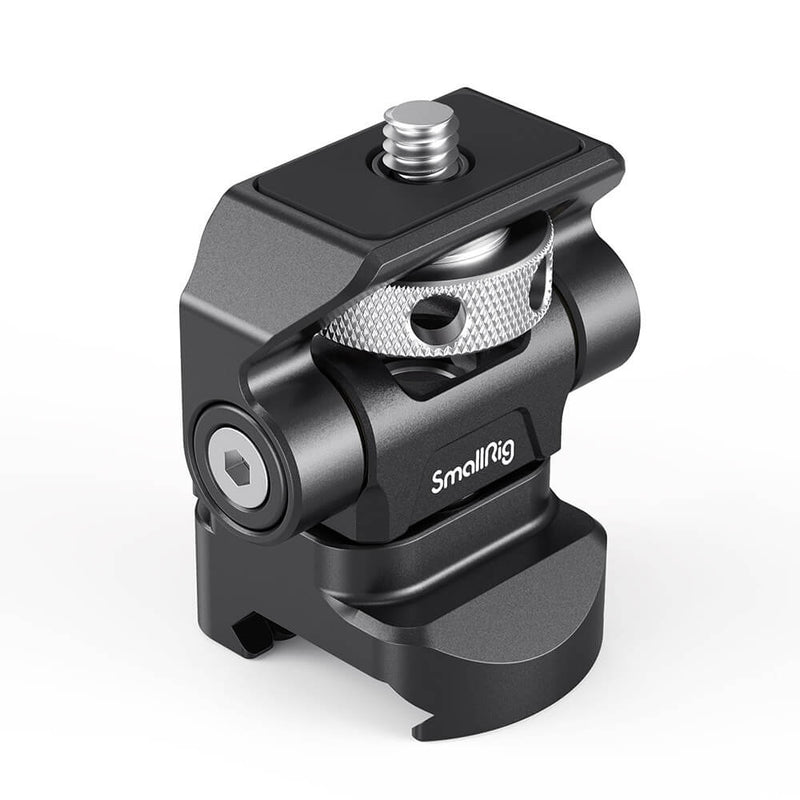

SmallRig Swivel and Tilt Adjustable Monitor Mount with NATO ClampMount 2906

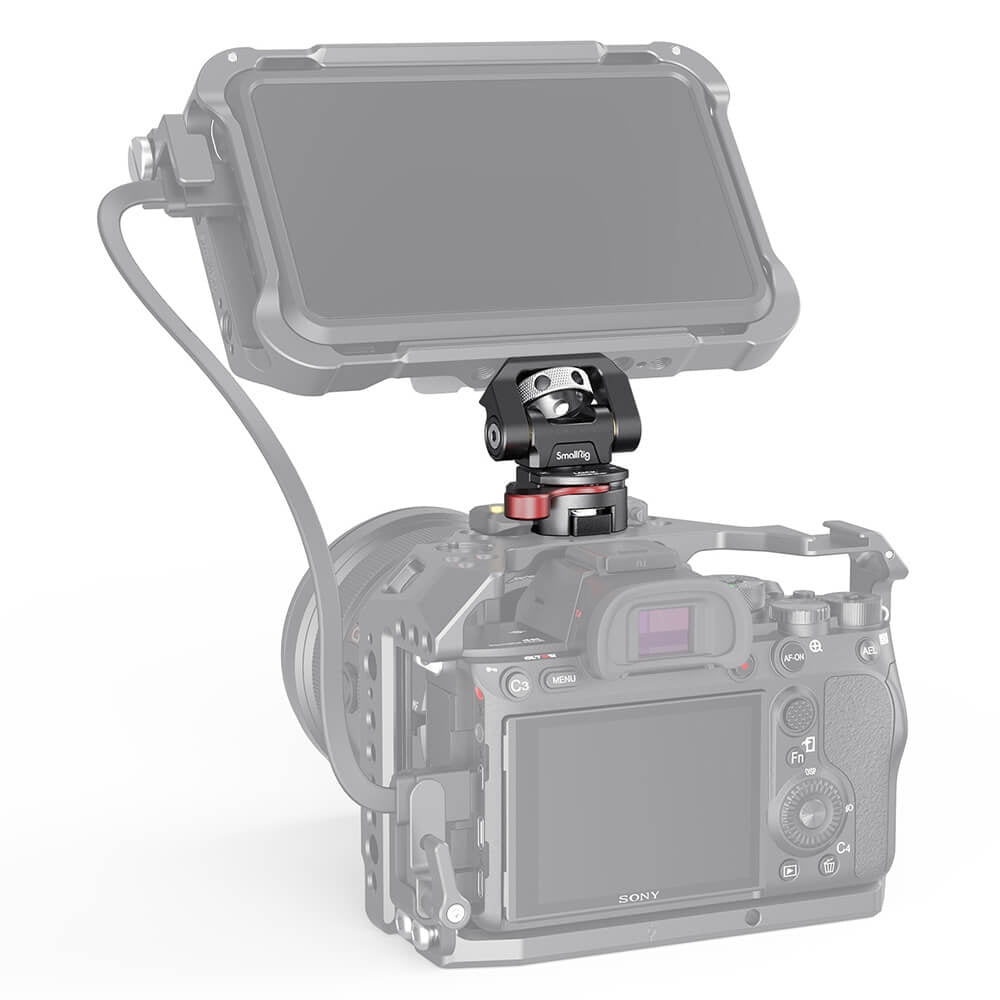

SmallRig Swivel and Tilt Adjustable Monitor Mount with NATO Clamp Mount 2906 is designed to hold your monitor onto the camera cage or other mounting system via NATO clamp. It features 1/4”-20 screw on the top for monitor, light, or microphone. The holder enables to swivel 360° sideways and tilts 170° with a free stop in any position. The tightness of each axis is adjustable via the Allen wrench. The robust mount is CNC-Machined Aluminum and can support 5” and 7” monitor up to 1.5kg. The swivel and tilt mount has protective rubber padding on top and includes an Allen wrench for tightening the mounts for further secure.

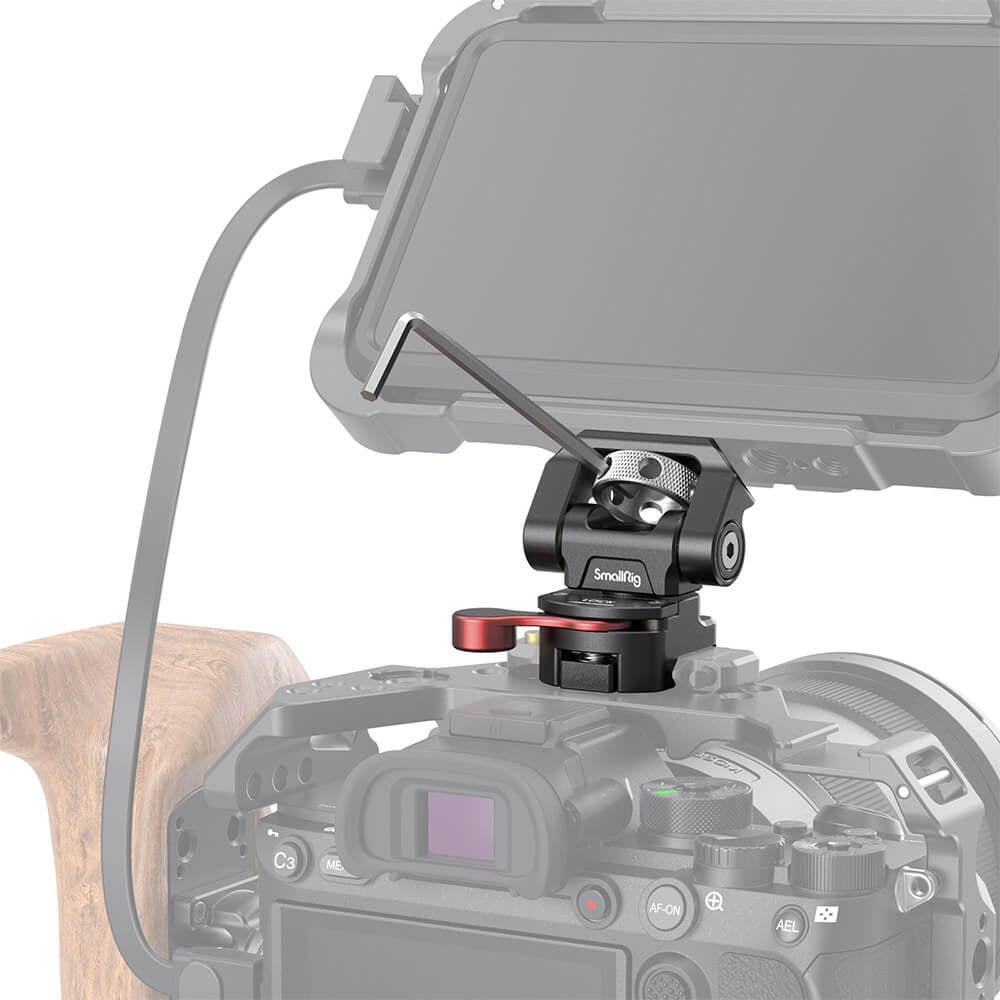

Note - Please do use the Allen Wrench to re-tighten the thumbscrew for further secure.
Key Features
1.Supports 5” and 7” Onboard Monitor up to 1.5kg

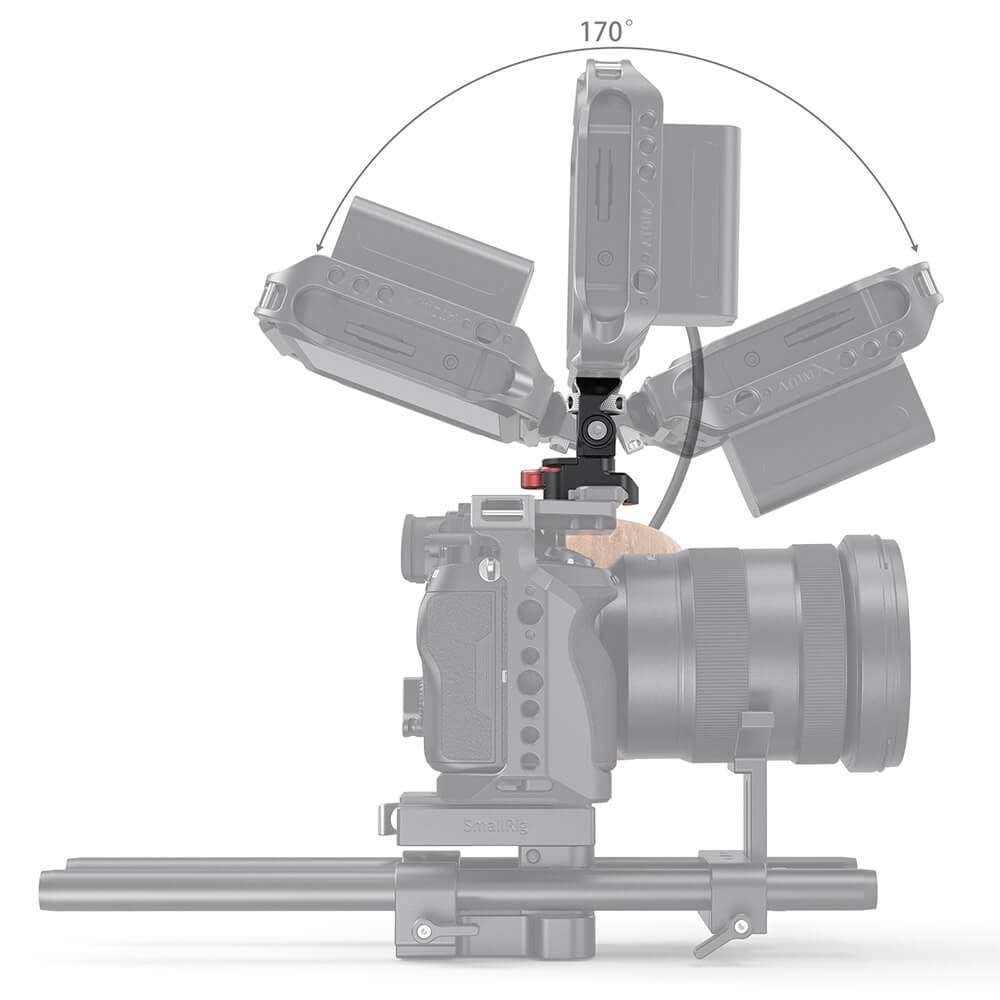

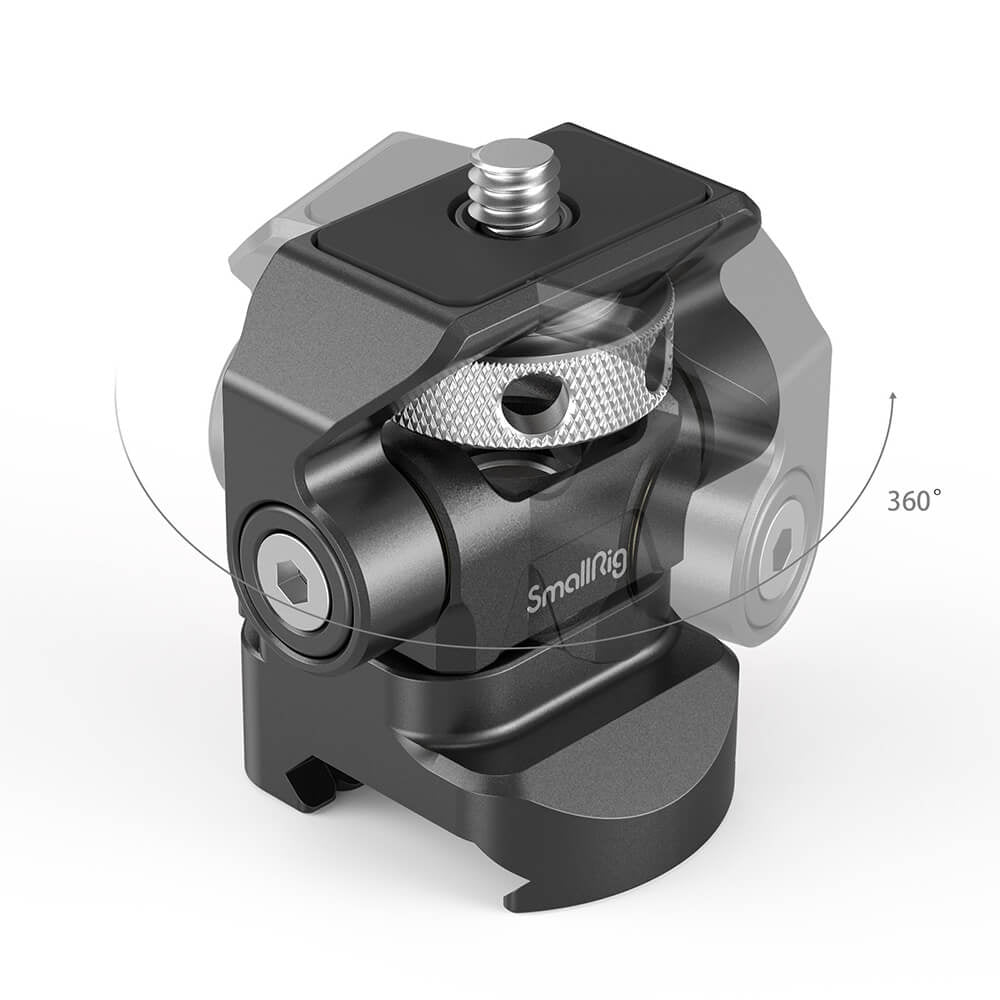

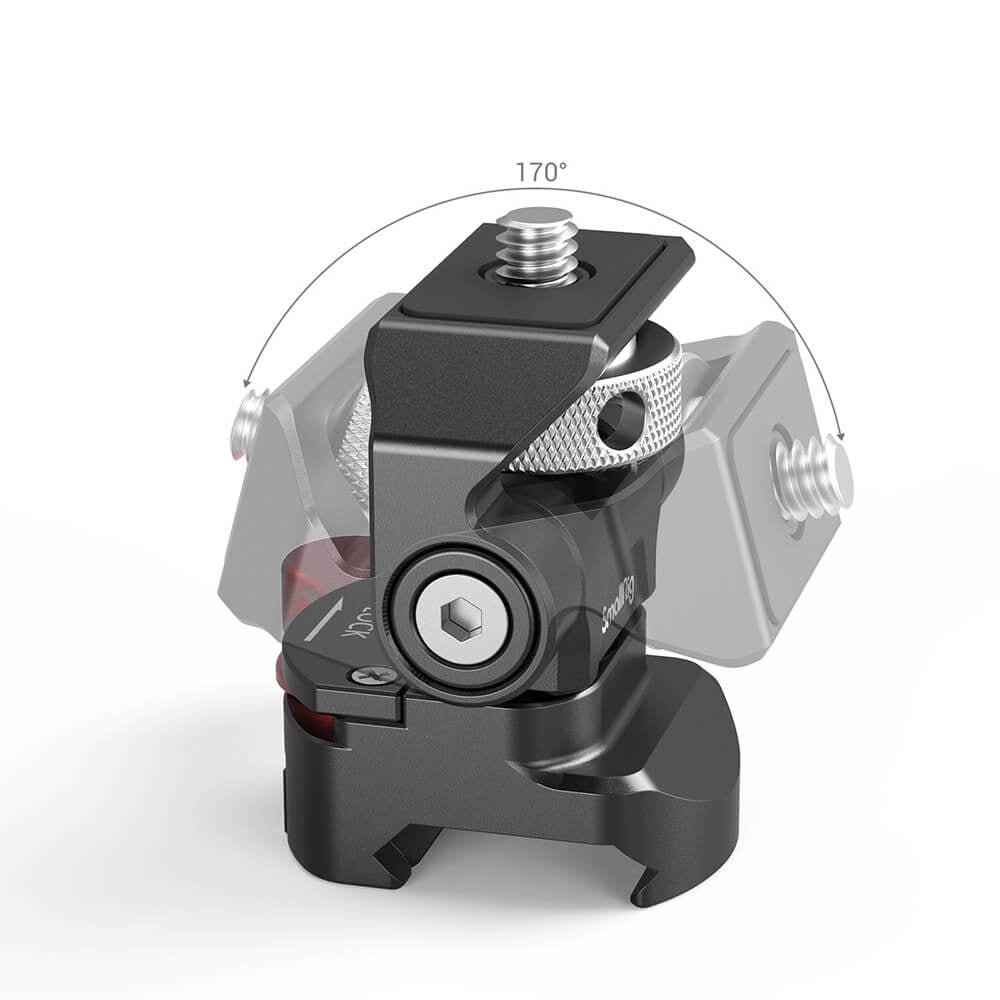

2.Swivels 360° and Tilts 170°
3.Tightness Adjustable on Each Axis
4.Features Slots on Thumbscrews for Tightening the Mount
5. Secures to Camera Cage via Quick Release NATO Clamp
Work With
SmallHD Focus Series
SmallHD Focus OLED Series
SmallHD UltraBright Series
SmallHD 500 Series, 700 Series
Atomos Ninja Series
Atomos Shogun Flame
Blackmagic Video Assist 5”
Blackmagic Video Assist 4K 7”
Other accessories weights less than 1.5kg.

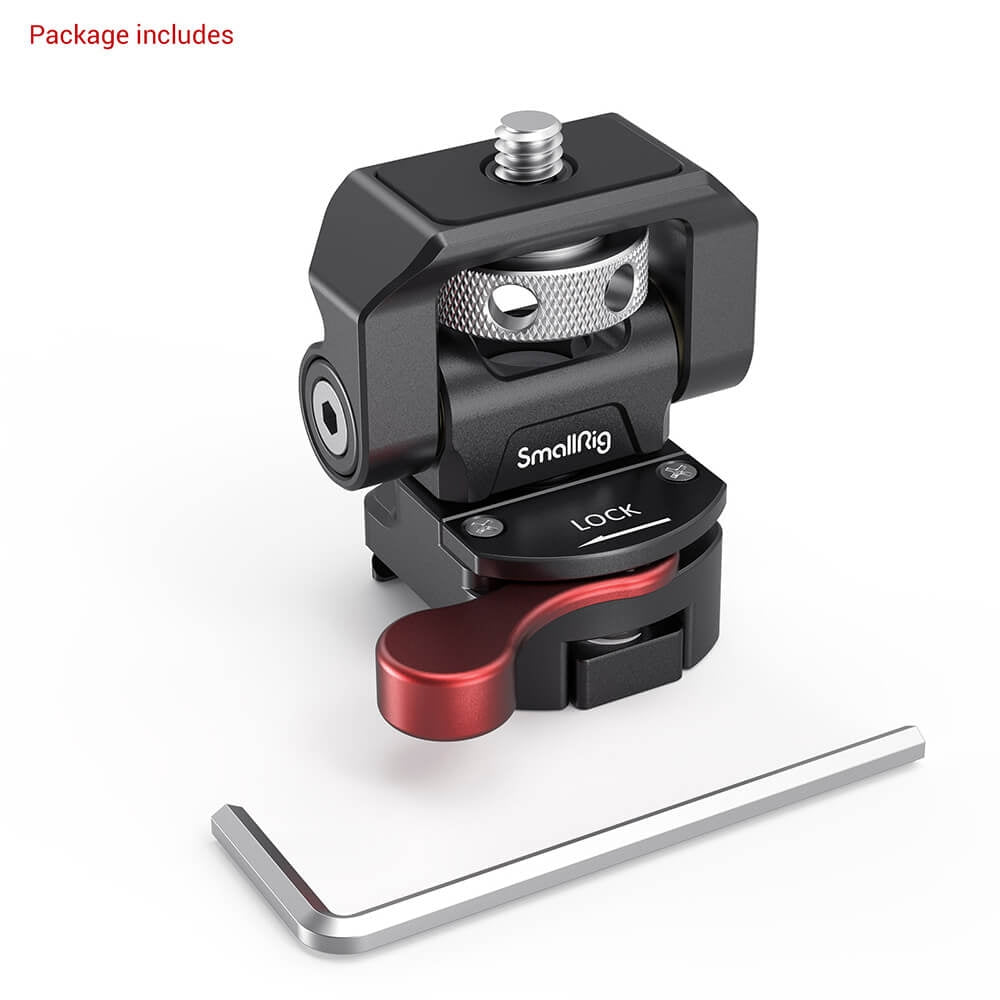

Packing List
1 x Monitor Mount
1 x Allen Wrench
Technical Data

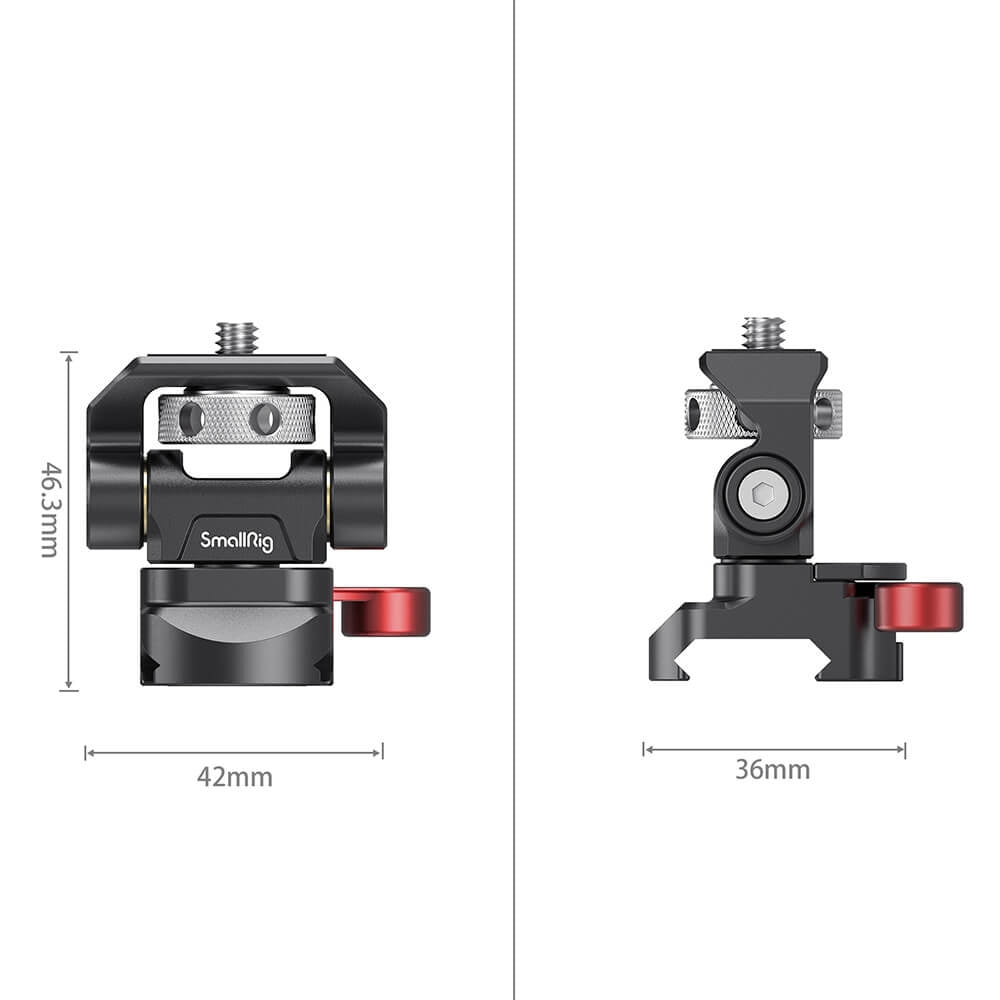

Product Dimensions: 42 x 46.3x 36mm
Package Dimensions: 76 x 63 x 40mm
Net Weight: 70g±5g
Package Weight: 97g±5g
Material(s): Aluminum Alloy, Stainless Steel
