Description
1. Universal baseplate designed for most mirrorless and DSLR cameras.

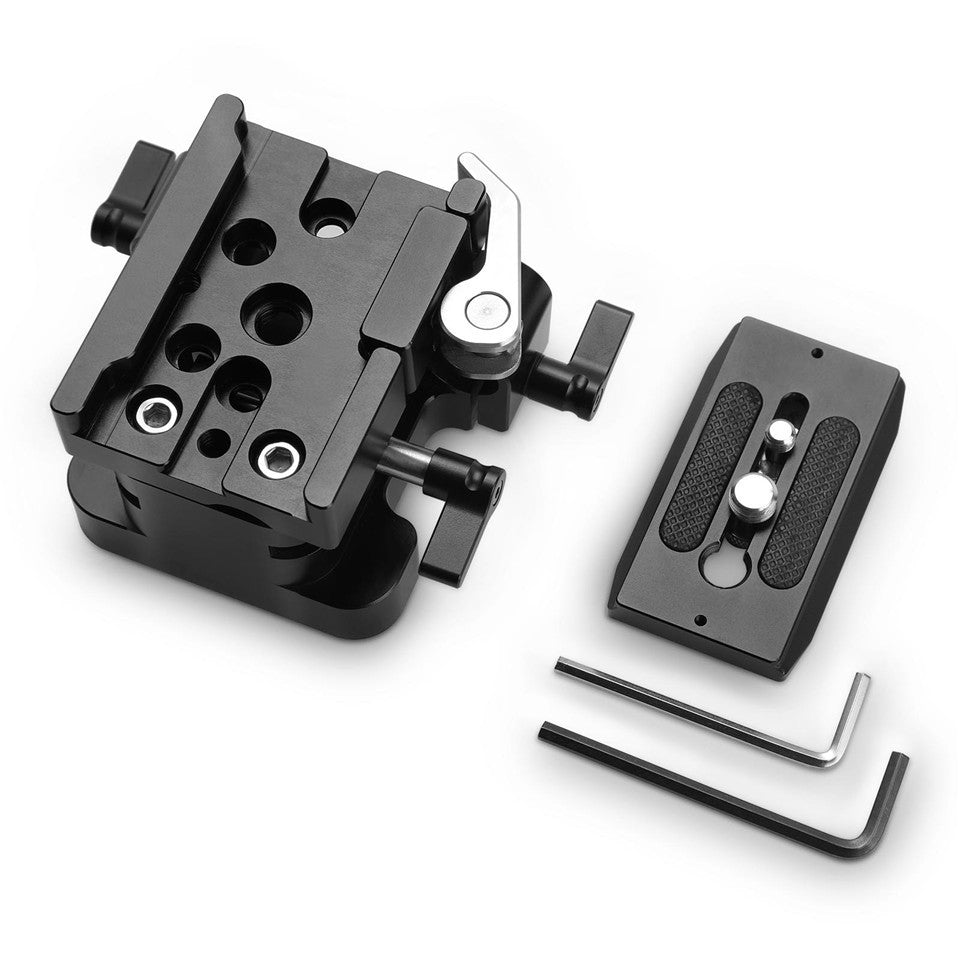

2. Included Arca style 15mm LWS baseplate and quick release plate. Camera is secured with a locking lever for fast setup.

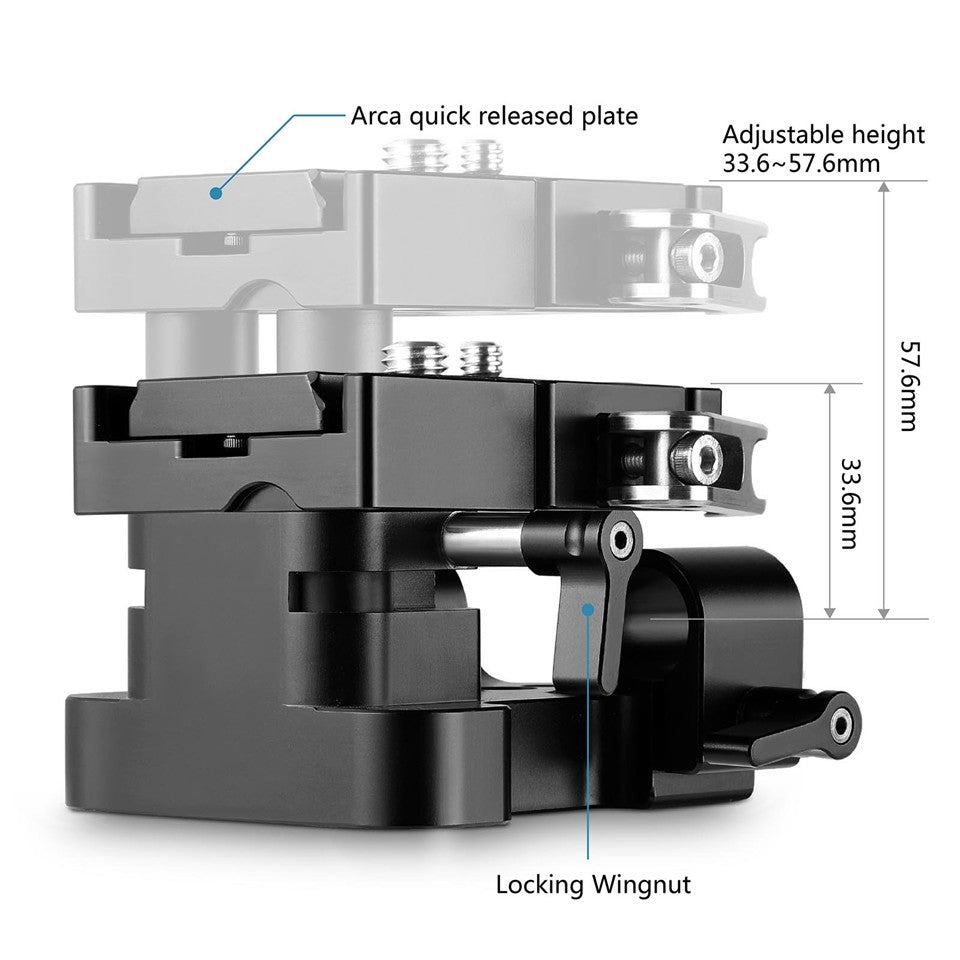

3. Rod clamp can be quickly adjusted by one knob to ensure 85mm standard rod height for most DSLR. (Distance from rod center to the surface of QR plate range from 57 to 81mm)

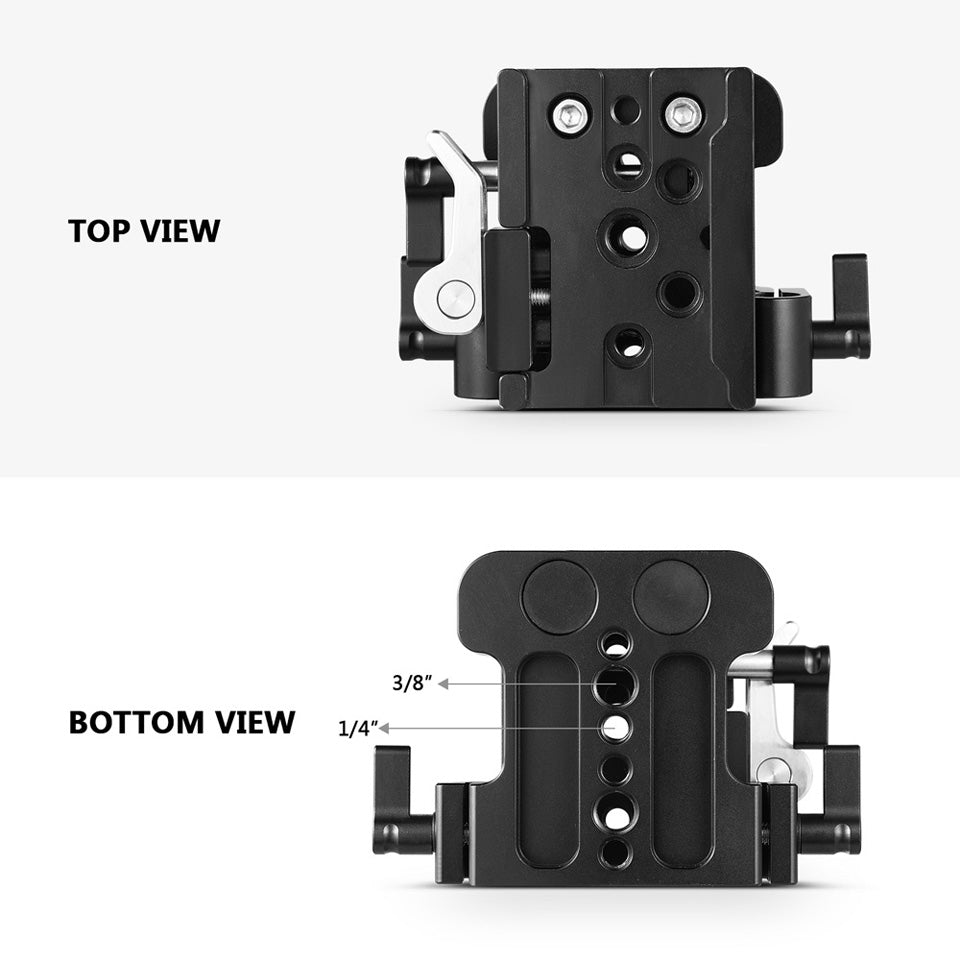

4. Bottom side is patterned with 1/4" and 3/8" threaded holes for QR plates and tripods.
SmallRig Universal 15mm Rail Support System Baseplate 2092B

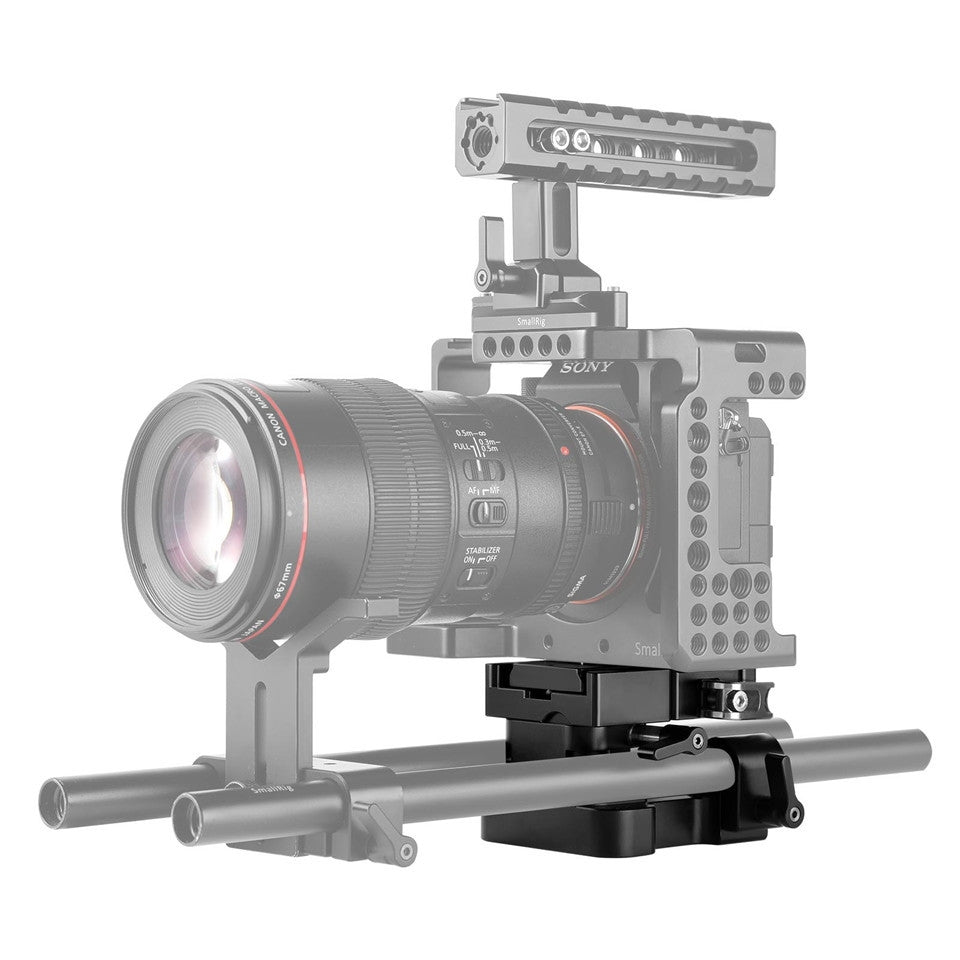

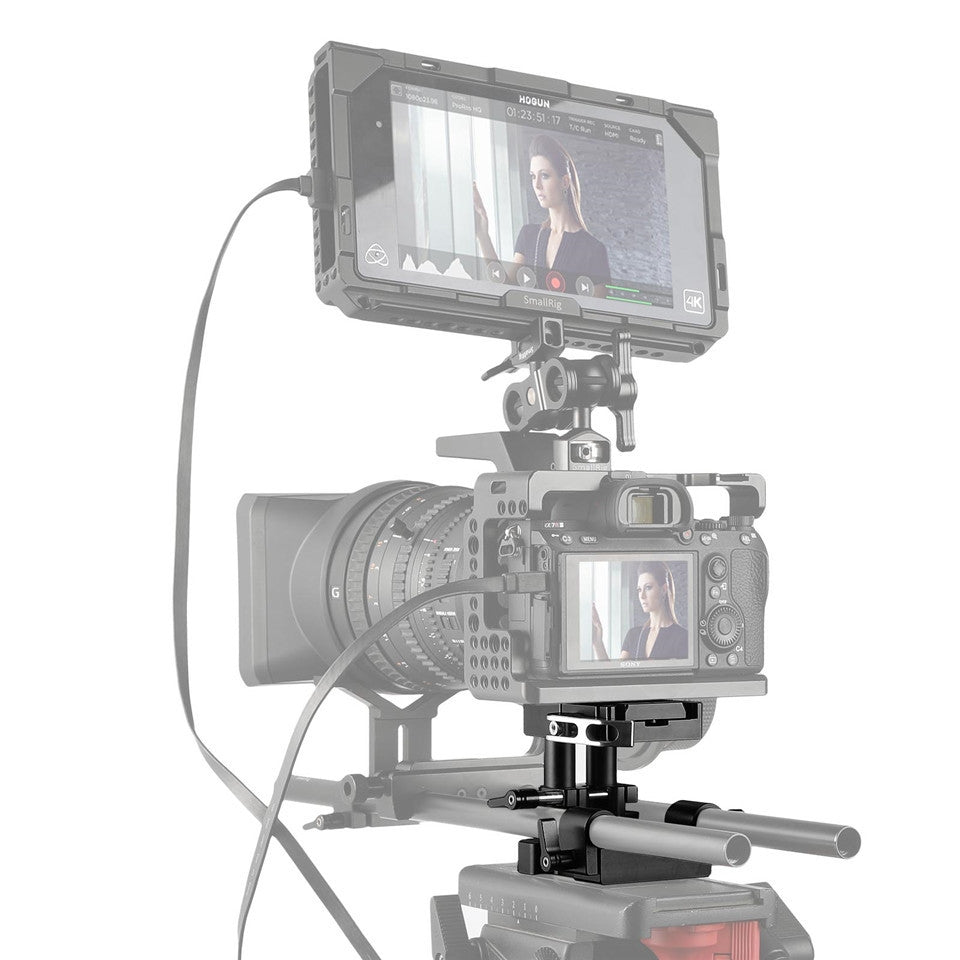

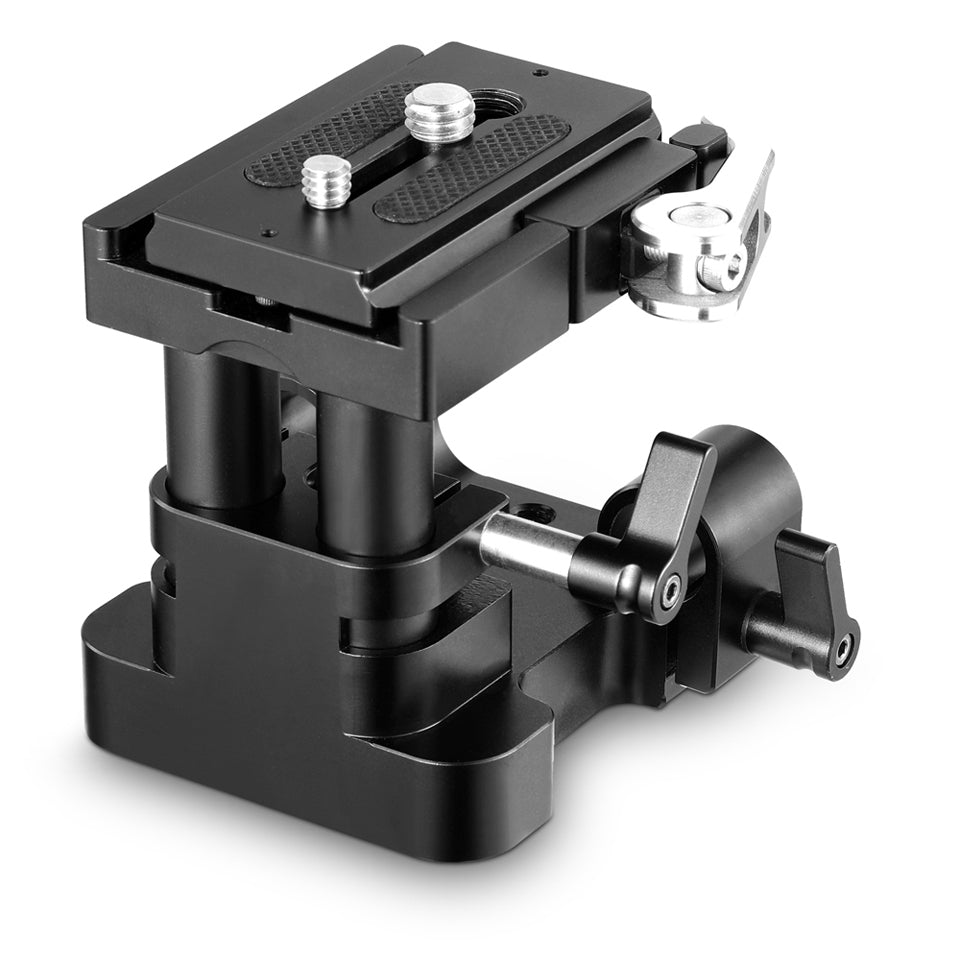

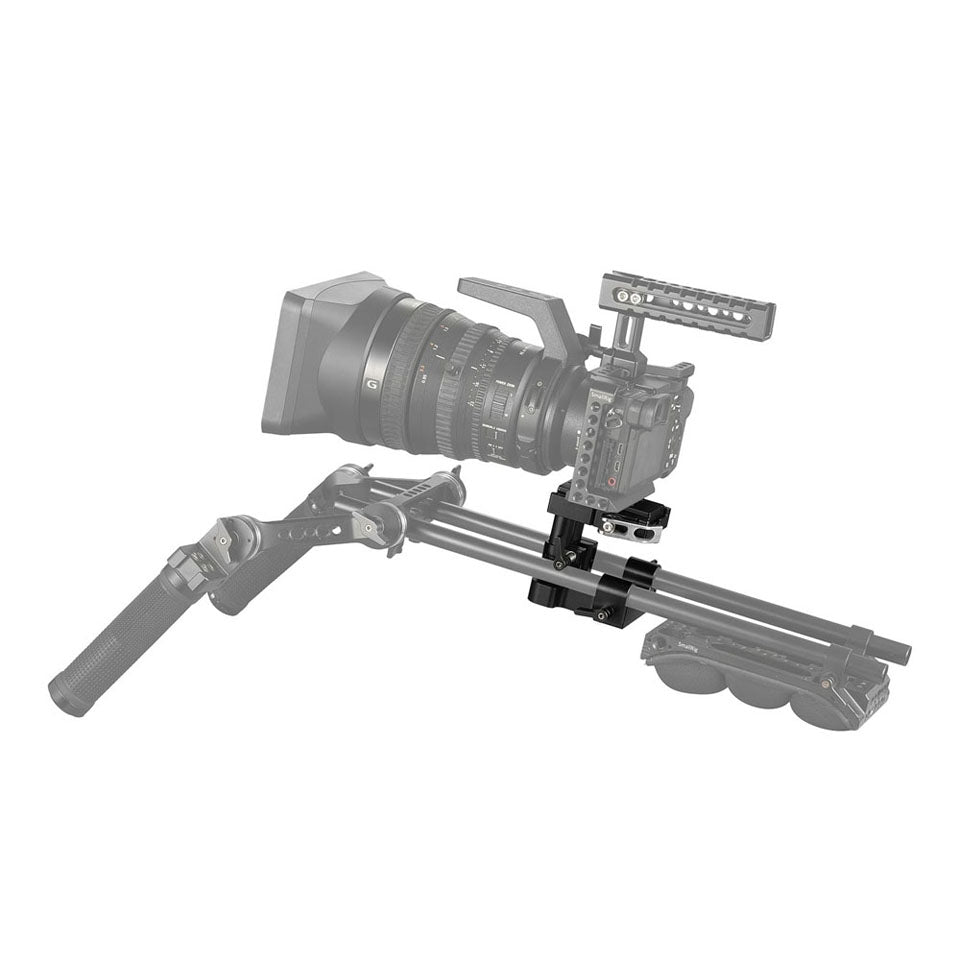

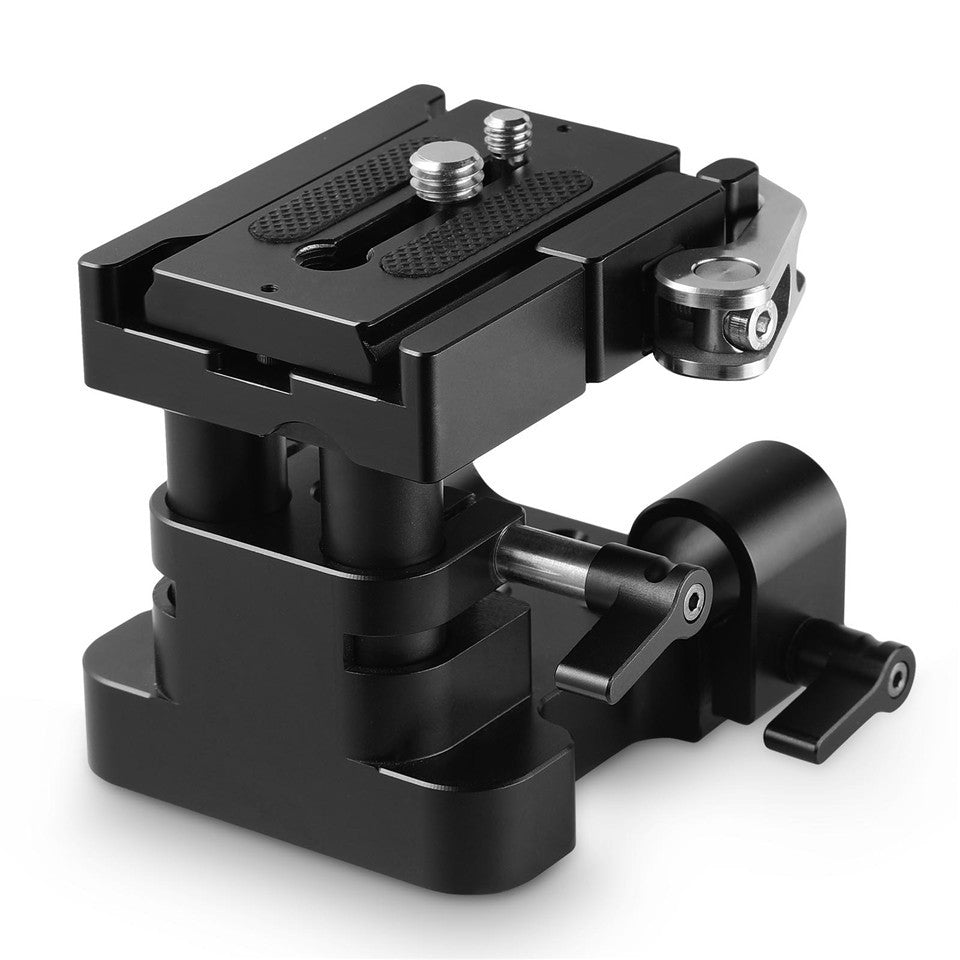

SmallRig Universal 15mm LWS Baseplate with Integrated QR Plate 2092 This universal 15mm LWS baseplate is designed to fit most DSLR and mirrorless cameras, with or without camera cage. It comes with an Arca style quick release plate for fast switch between tripod mode and handheld shooting.
Key Features
1. Universal baseplate designed for most mirrorless and DSLR cameras.
2. Included Arca style 15mm LWS baseplate and quick release plate. Camera is secured with a locking lever for fast setup.
3. Rod clamp can be quickly adjusted by one knob to ensure 85mm standard rod height for most DSLR. (Distance from rod center to the surface of QR plate range from 57 to 81mm)
4. Bottom side is patterned with 1/4" and 3/8" threaded holes for QR plates and tripods.
Work With
Sony A6000/A6300/A6500/A7/A7II/A9/A7RIII
Panasonic GH3/GH4/GH5/G80/GX85/G85/G7
Fujifilm X-T2 BMD BMPCC
Packing List
1x Universal 15mm Rail Support System Baseplate
Technical Data
Product Dimensions: 108x72x57 mm
Net Weight: 415g
Package Size: 116x112x95 mm
Material(s): Aluminum Alloy
