SmallRig V-Mount Battery Mount Plate 4505

SKU: NG-SR-4505
No reviews

Price:
Sale price₹ 8,280.00 Regular price₹ 9,200.00

Description

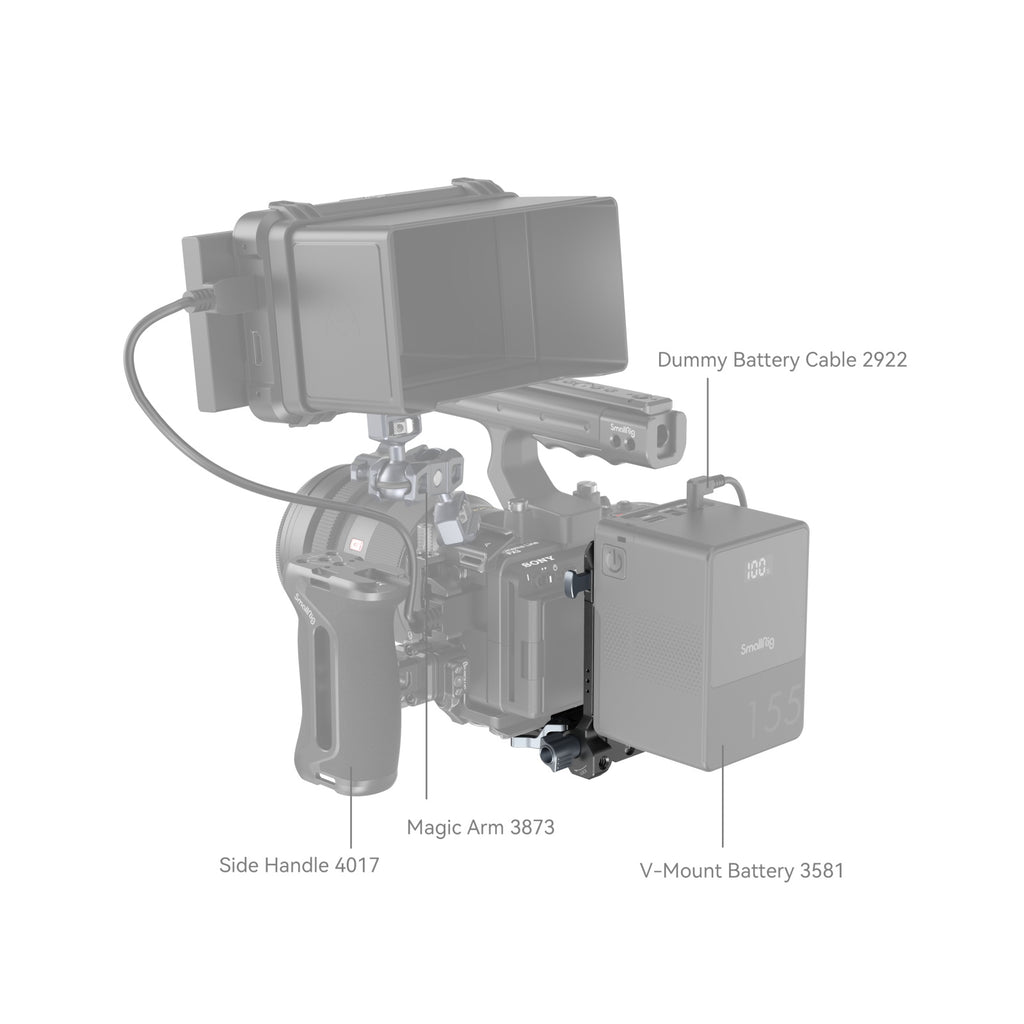

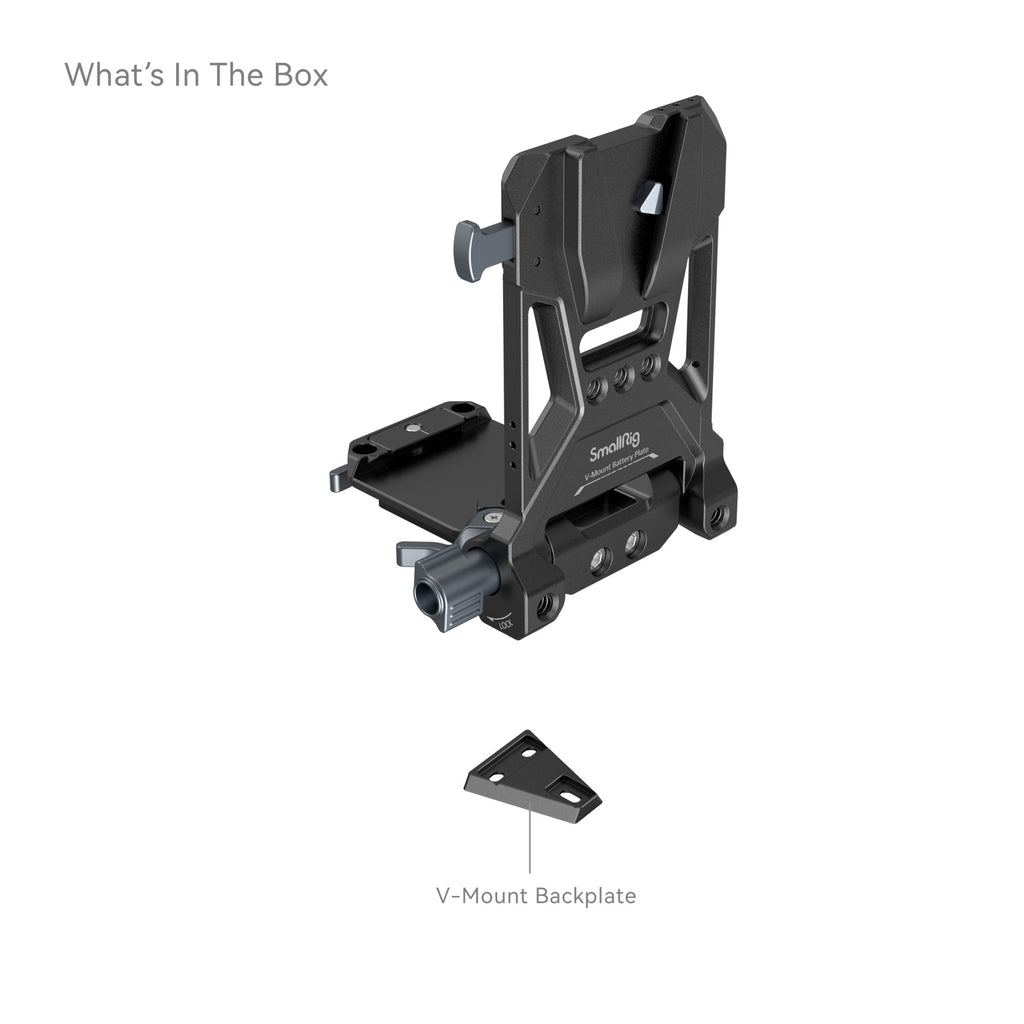

SmallRig V-Mount Battery Mounting Plate 4505 is a compact, lightweight, convenient, all-in-one mounting solution for V-mount batteries. The baseplate can be stretched to fit mirrorless / DSLR cameras of various sizes. Tool-free installation and adjustment make the process quick and time-saving. The built-in Arca-Swiss mount plate supports any with an Arca-Swiss plate SmallRig cages or SmallRig baseplate. The built-in 1/4"-20 threaded holes provide more power supply solutions by attaching a Mounting Clamp for Portable Power Banks BUB2336. The built-in 1/4"-20 & 3/8"-16 holes at the bottom allow attaching other quick-release plates. The rotatable structure facilitates screen usage and adopts damping to prevent your device from falling. The folding design of the V-Mount plate increases compactness and portability.The included aluminum alloy V-Mount Backplate can replace the plastic V-Mount Plate on the back of other V-mount batteries.

Note:
1.Load-bearing capacity: 5kg / 11.0lb
2.It is recommended to use with SmallRig cages and SmallRig baseplates

KEY FEATURES

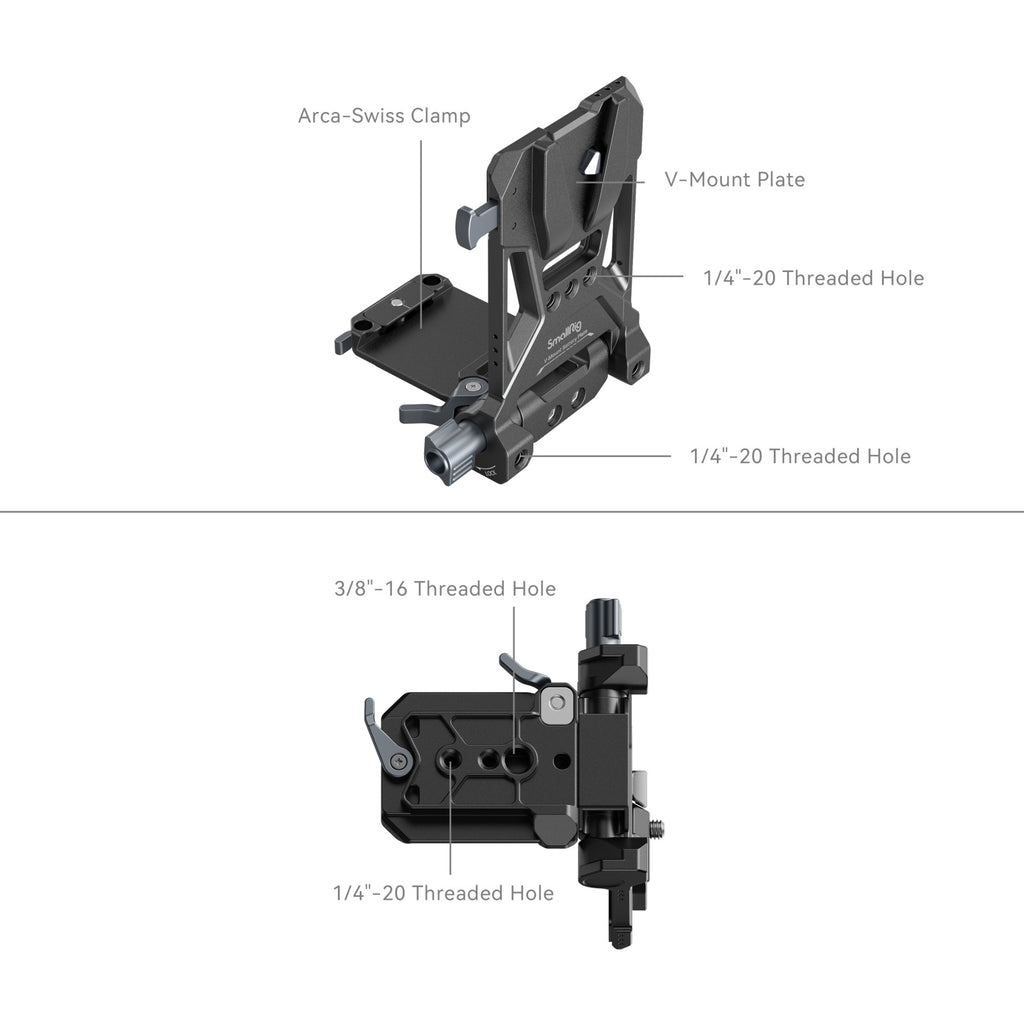

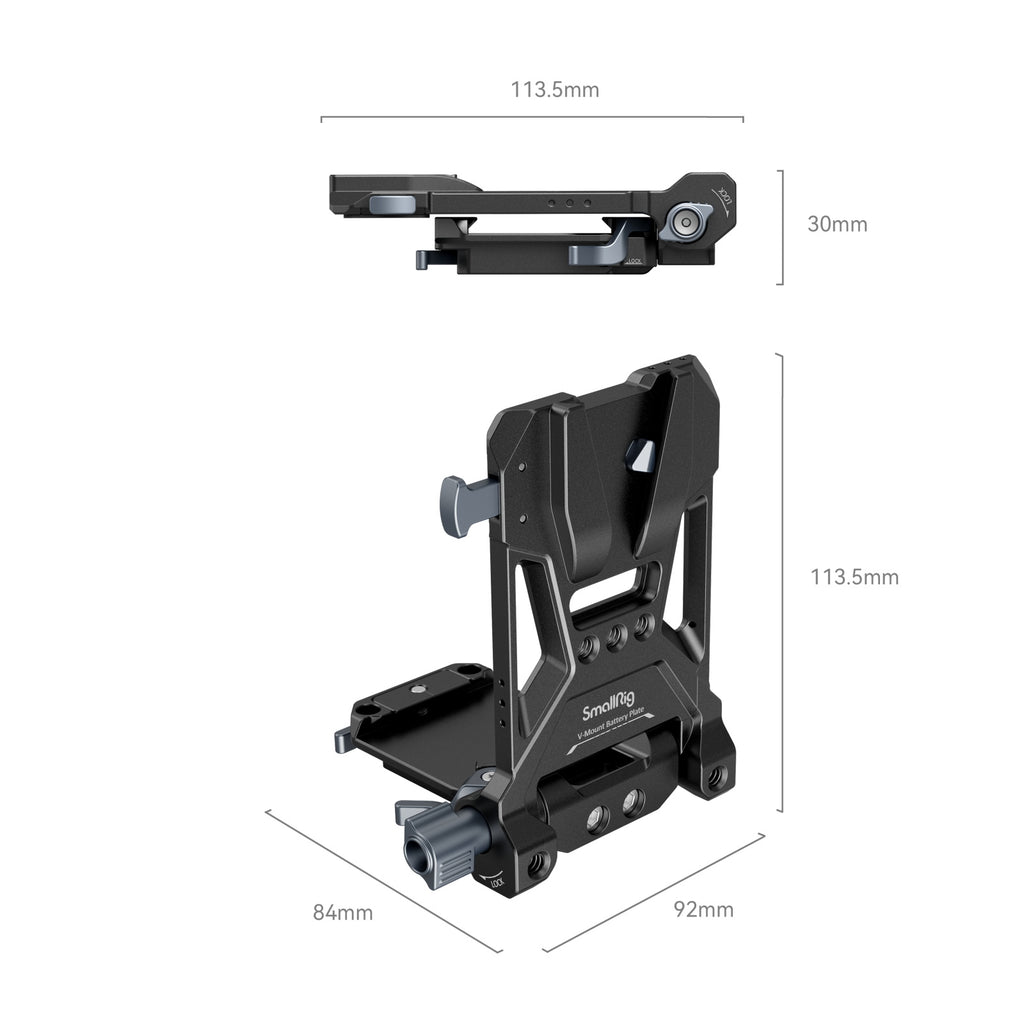

  • Versatile and Compact Design: Adopts L-shaped design, which integrates V-mount battery plate, stretchable rod, 1/4"-20 and 3/8"-16 threads to realize quick installation and adjustment of camera and battery. The built-in mount clamp for Arca supports any SmallRig cages with QR plate for Arca. Folding and lightweight design, only 113.5 mm x 30 mm, 199g, easy to store and carry round.

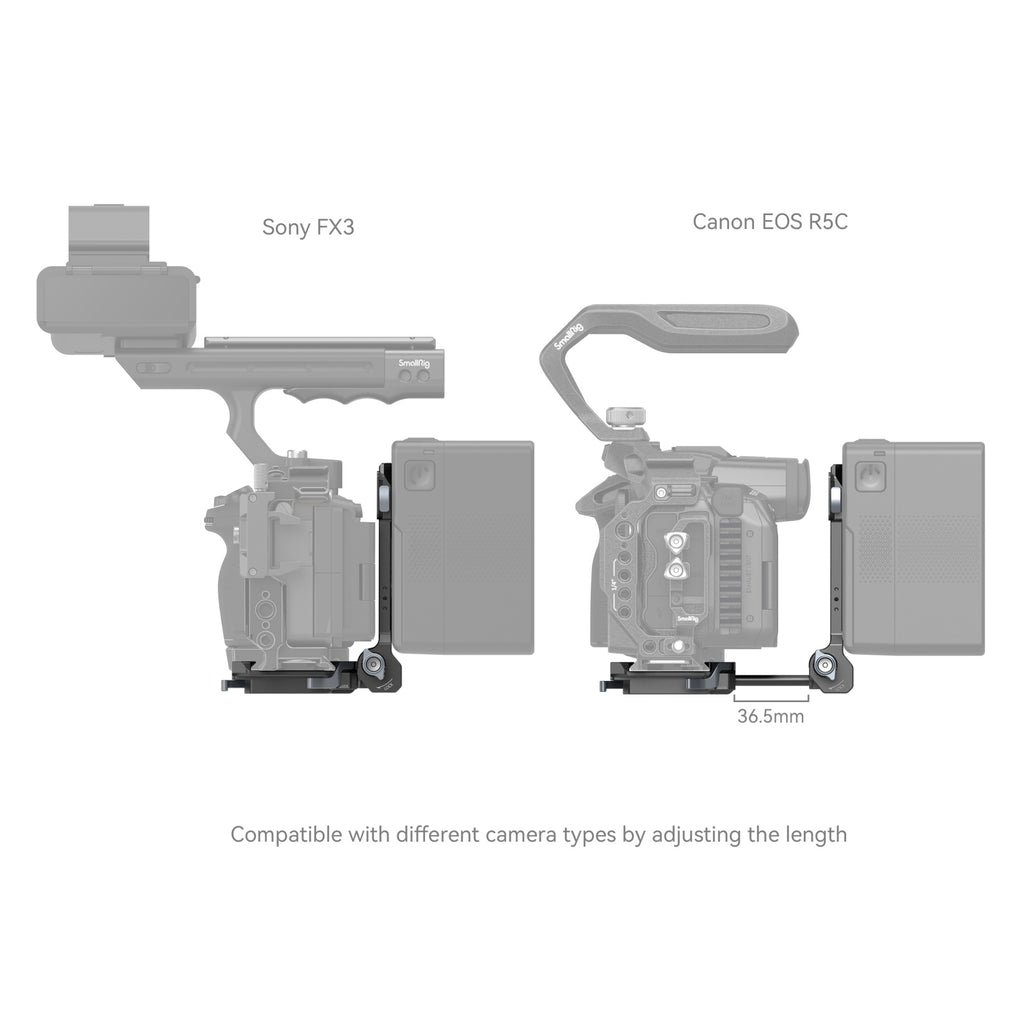

  • Stretchable Baseplate: The baseplate of this V-mount battery plate is stretchable, and the maximum stretchable distance is 36.5 mm / 1.43 inch, which meets the needs of cameras of different sizes and improves the compatibility. Locking and releasing the rod is realized by a toggle lock, which is fast and time-saving without the needs of tools.
  • Widely Compatibility: Versatile and universal, it is suitable for most camera models on the market, for Mirrorless / DSLR cameras less than 111mm thick, like for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 7C / FX3 / FX30, for Canon EOS R5C / R5 / R6 / R6 Mark II / R7 / R10 / R / RP , for Panasonic LUMIX S1H / S1R / S1 / S5 / S5 II / GH6 / GH5.

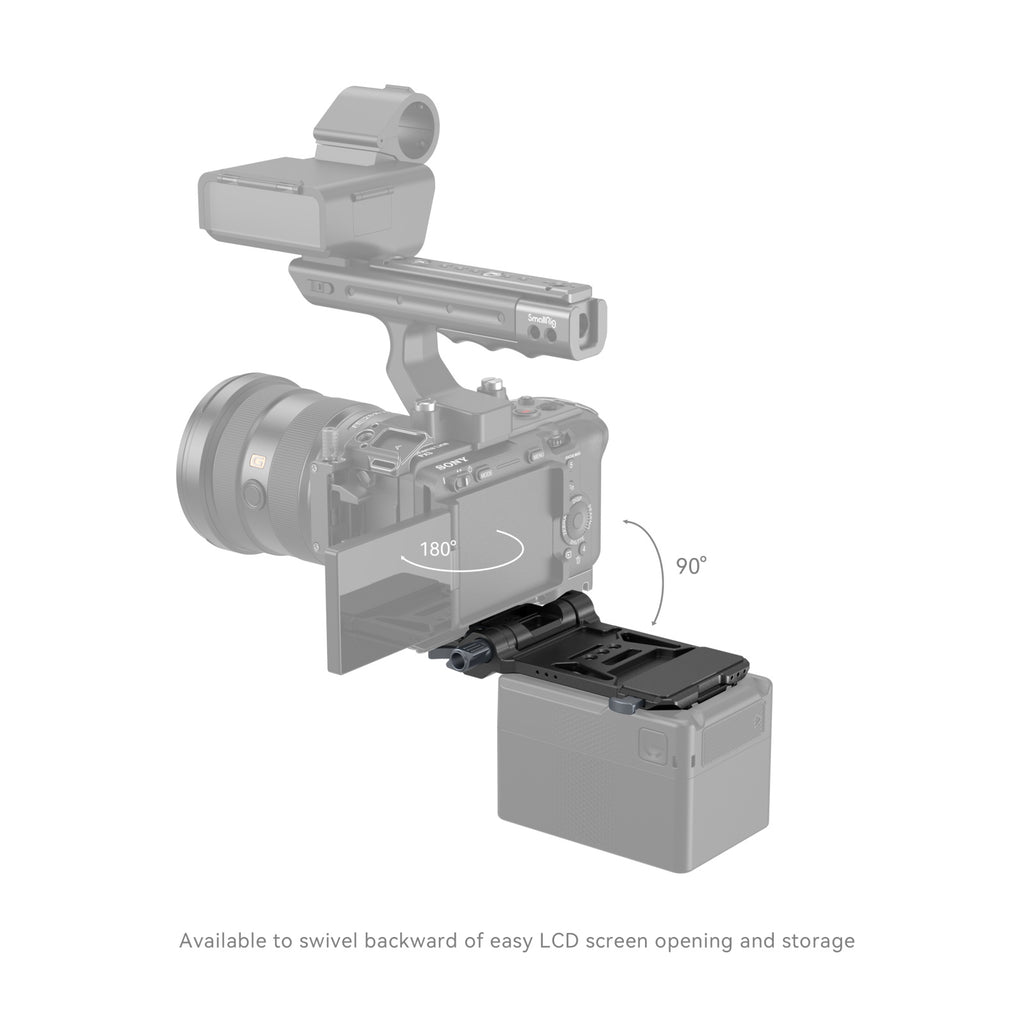

  • Smart Rotatable Design: Can be rotated and adjusted by 180°. Adjust forward for convenient storage, adjust backward for enough space to open the camera flip screen. This rotating design does not require you to remove the battery first, which effectively saves time. And it also features pivot damping to prevent equipment from falling.
  • Expand Your Creativity: The Built-in 1/4"-20 and 3/8"-16 threaded holes on the bottom enable to mount the quick release plate you need, such as for Arca-Swiss and for Manfrotto etc.

COMPATIBILITY
Mirrorless / DSLR cameras less than 111mm thick, for example:
Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 7C / FX3 / FX30
Canon EOS R5C / R5 / R6 / R6 Mark II / R7 / R10 / R / RP
Panasonic LUMIX S1H / S1R / S1 / S5 / S5 II / GH6 / GH5
