Description

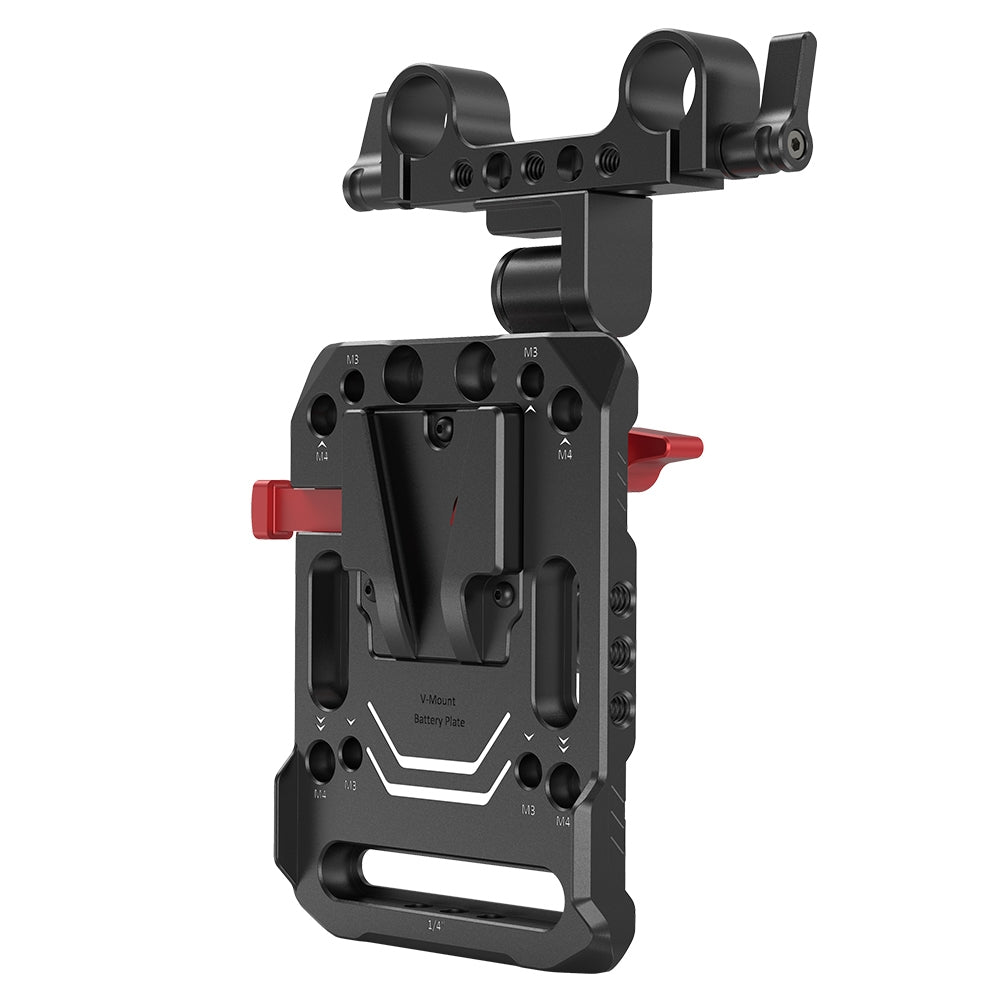

SmallRig V Mount Battery Plate with Adjustable Arm 2991 utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig with your battery's power port(s). It comes with a dual 15mm rod clamp with an adjustable arm to help mount the plate to your 15mm LWS rod system and adjust the V mount battery's position as needed. The plate itself features multiple 1/4-20" countersinks, M3 countersinks, M4 countersinks, 1/4-20" thread holes, M4 thread holes, and an ARRI 3/8" -16 thread hole to attach a dual rod clamp, a magic arm, or other accessories. Two stoppers will prevent the battery from twisting when attached. The plate is also compatible with the Blackmagic URSA mini.
Note:
1. No V-Lock part (male) provided with the plate.
2. This is purely a mounting solution for a V-mount battery — no power ports on the plate.
*Please note the import tax may occur.
Key Features
1. The plate utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig with your battery's power port(s).
2. Two stoppers prevent the battery from twisting when attached.

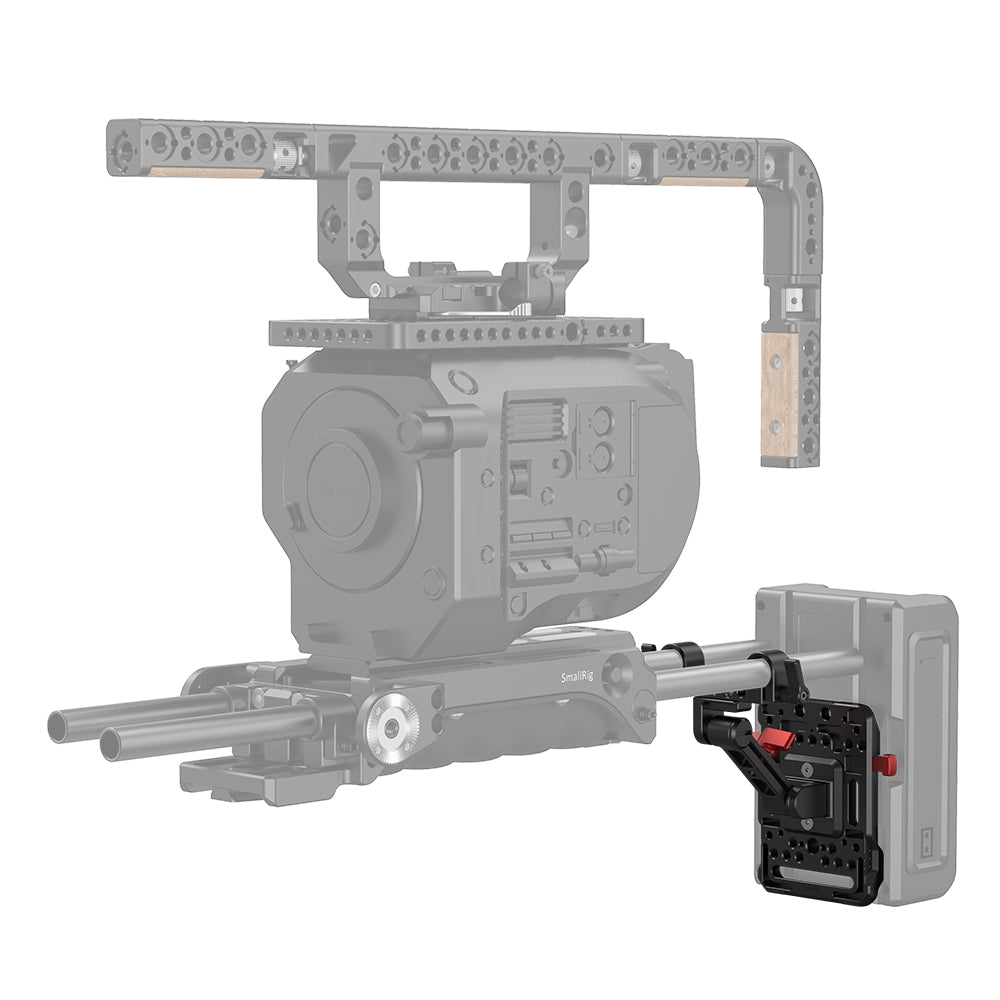

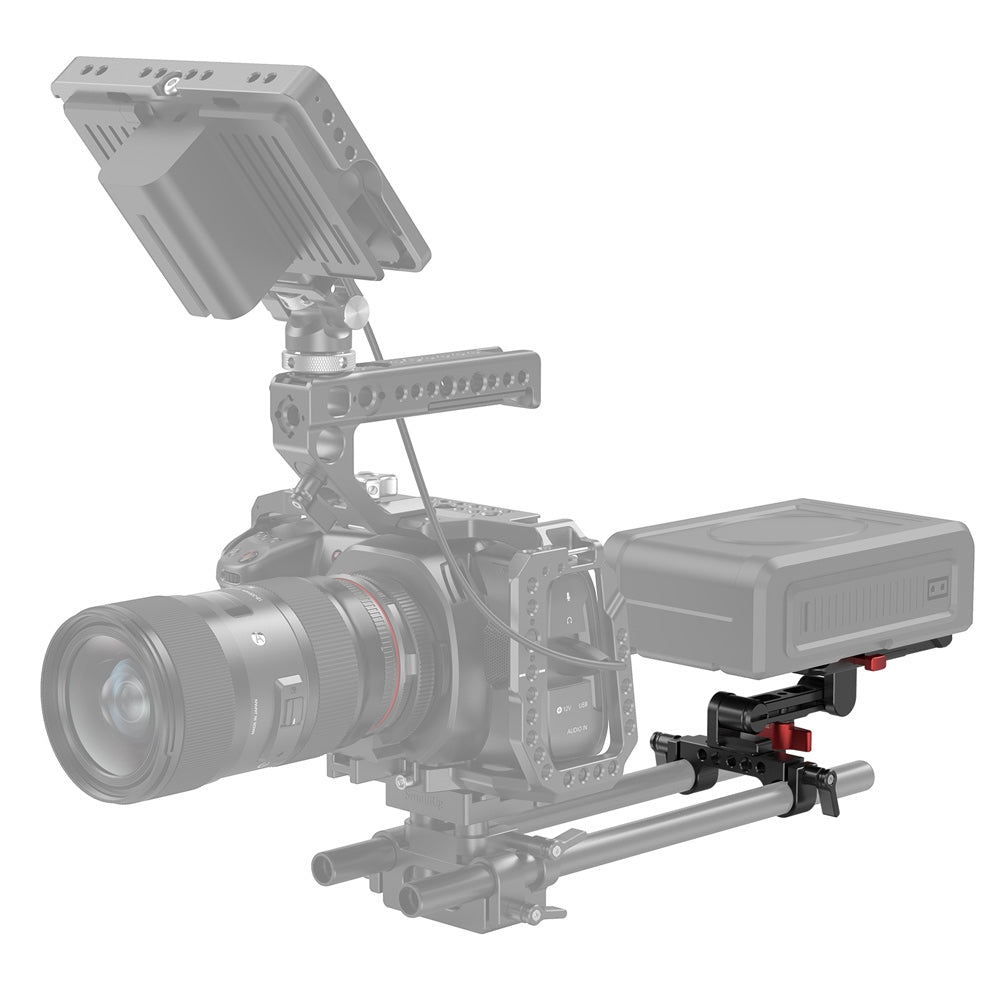

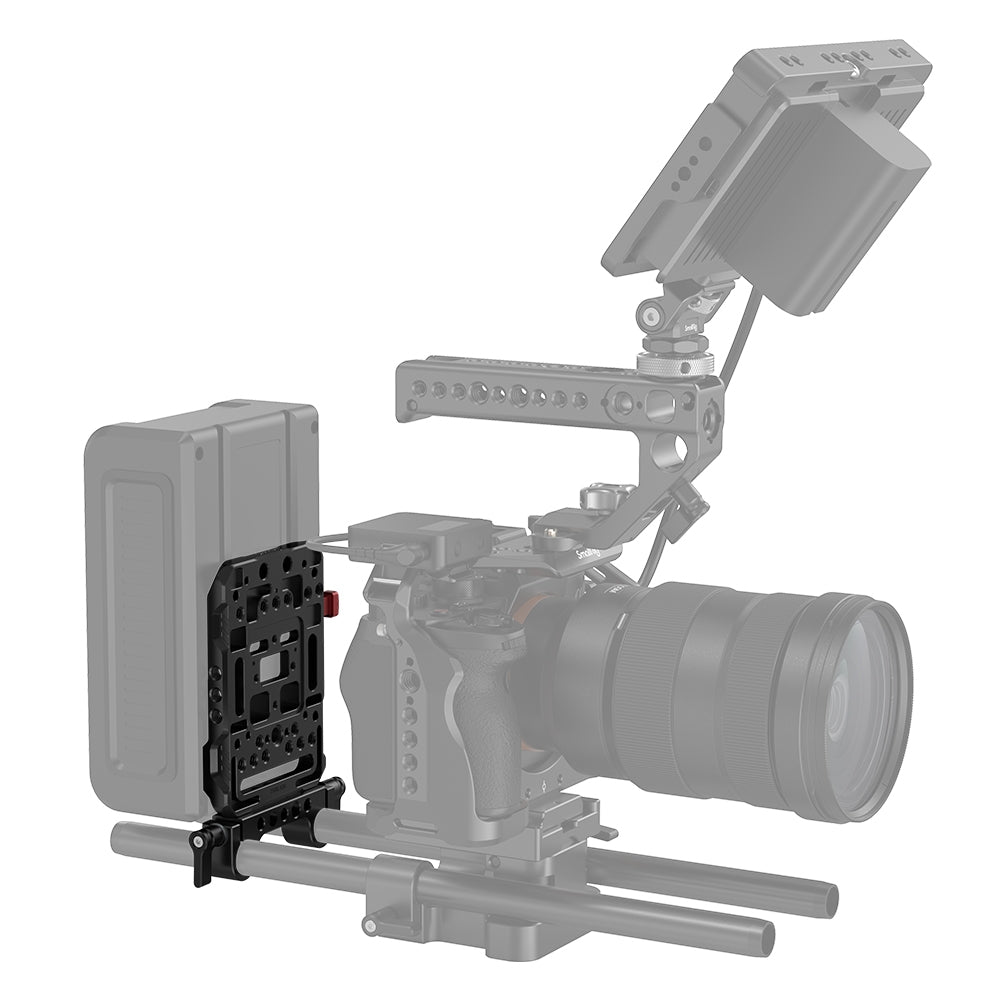

3. It comes with a dual 15mm rod clamp with an adjustable arm to help mount the plate to your 15mm LWS rod system and adjust the V mount battery's position as needed.

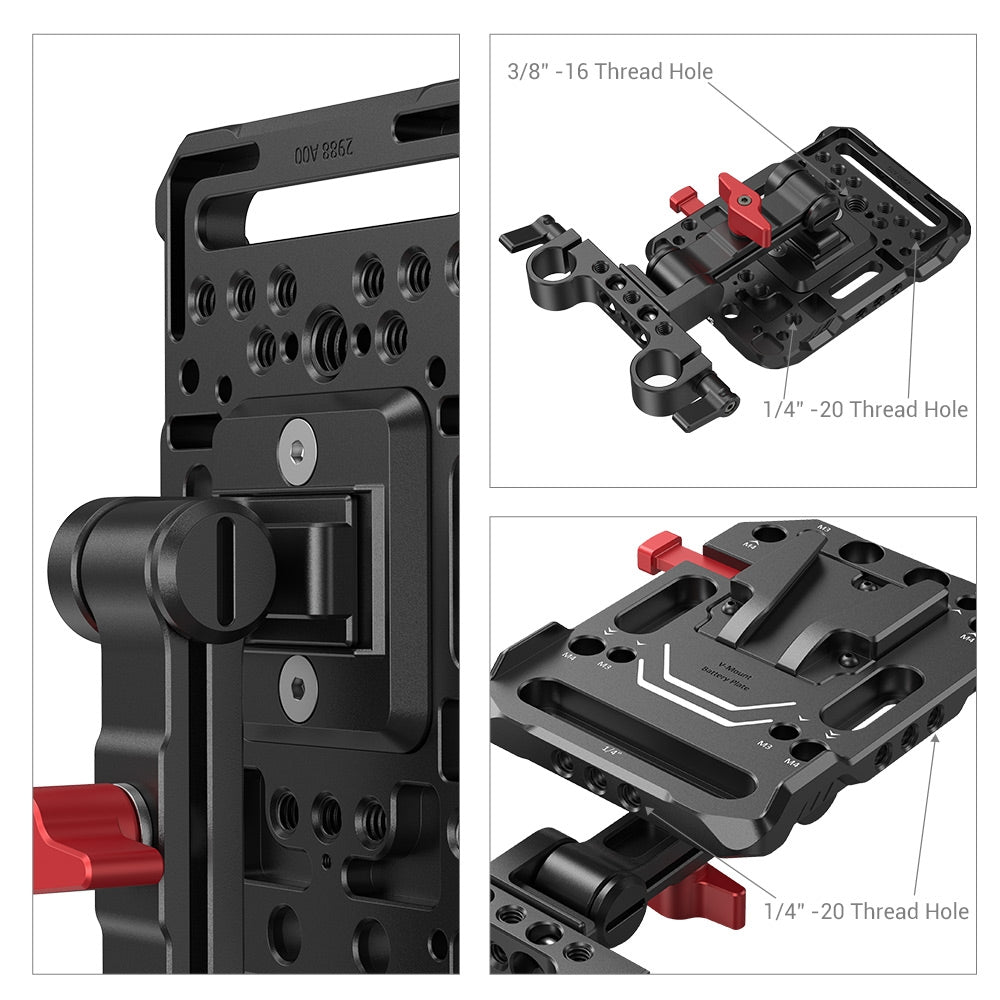

4. The plate itself features multiple 1/4-20" countersinks, M3 countersinks, M4 countersinks, 1/4-20" thread holes, M4 thread holes, and an ARRI 3/8" -16 thread hole to attach a dual rod clamp, a magic arm, or other accessories.

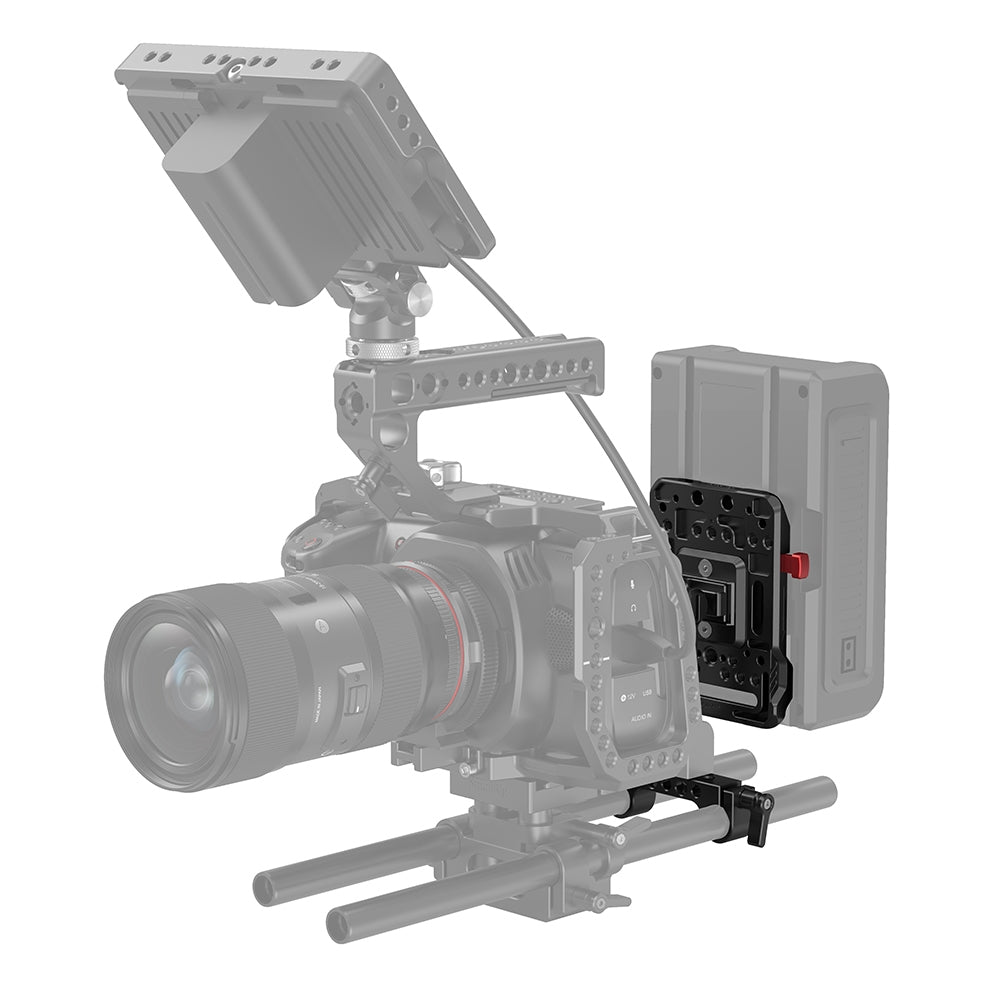

5. The plate is compatible with the Blackmagic URSA mini.
Work With
The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

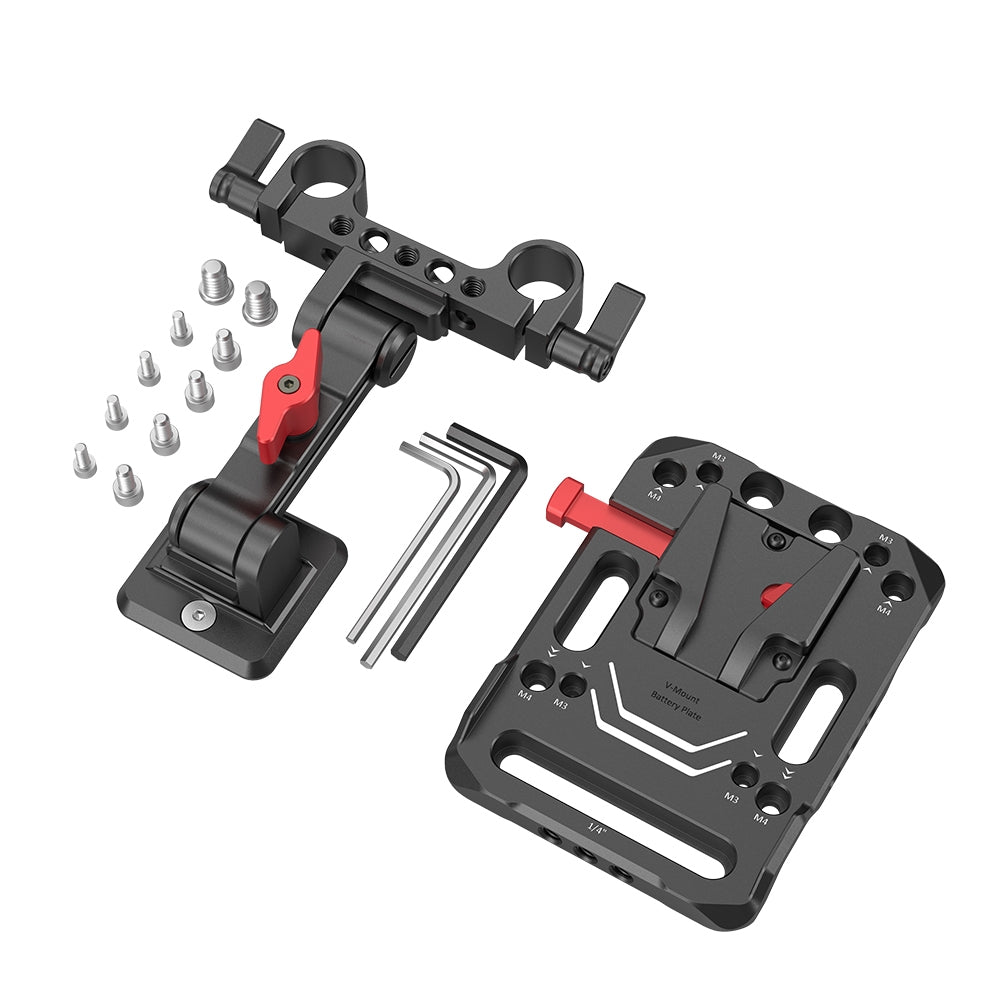

Packing List
1 x V Mount Battery Plate
1 x Dual 15mm Rod Clamp with Adjustable Arm
3 x Allen Wrench
2 x 1/4-20" Screw (short)
2 x 1/4-20" Screw (long)
4 x M4 Screw
4 x M3 Screw
Technical Data

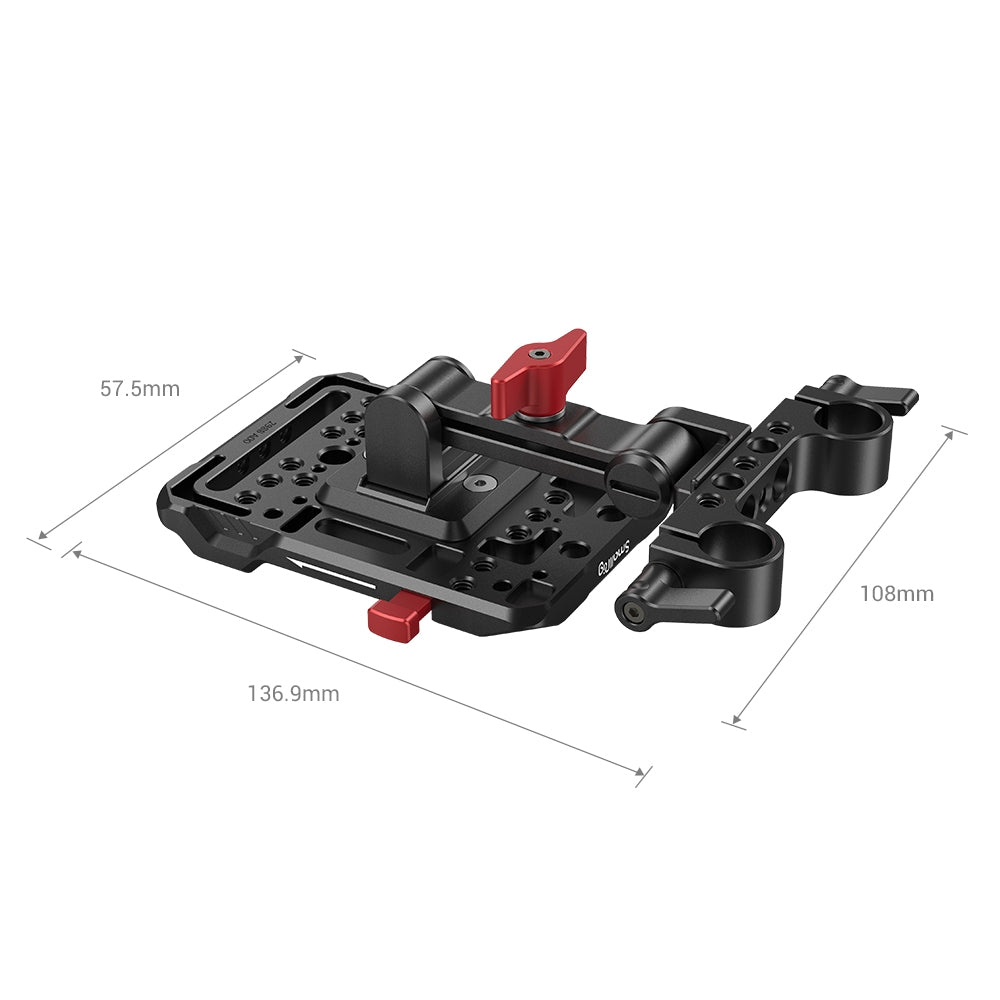

Product Dimensions: 136.9 x 108 x 57mm
Package Dimensions: 143 x 100 x 55mm
Net Weight: 310g±5g
Package Weight: 363g±5g
Material(s): Aluminum Alloy
